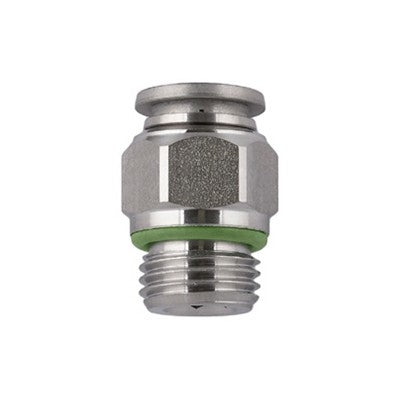

60020-4-M5 by AIGNEP | 60/62 Series | 4mm Tube Push Connect x M5 Male | Straight | FKM Seal | Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.26 |
| 40–79 | $15.61 |
| 80+ | $13.77 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Material(s):
Seal Material(s):
Straight Male Stainless - BSPP
Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 392° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM
Temperature Range: 5 ° F - 392° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM

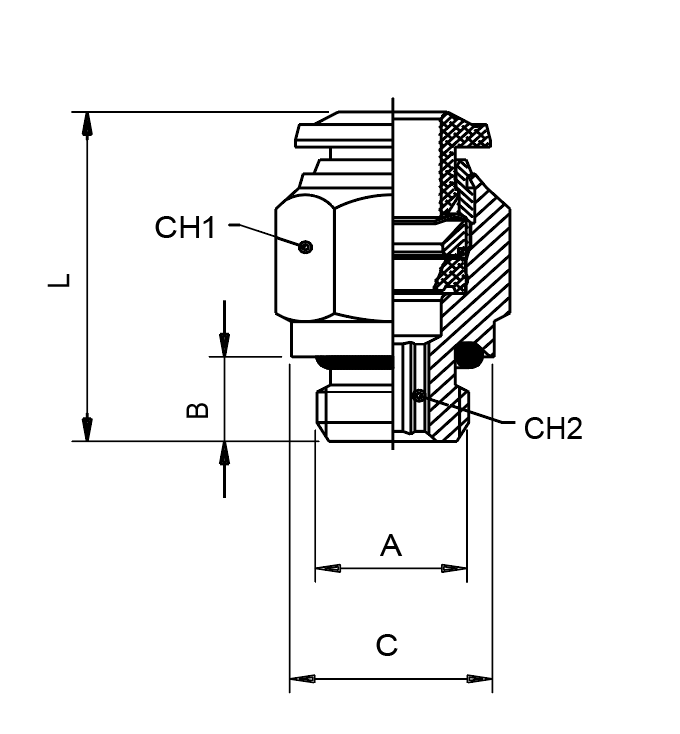

| Product Number | Tube | A | B (IN) | B | C | L | CH1 | CH2 |
|---|---|---|---|---|---|---|---|---|
| 60020-4-M5 | 4 mm | M5 | 0.157" | 4 mm | 8 mm | 20 mm | 10 mm | 2 mm |
| 60020-4-1/8 | 4 mm | 1/8" | 0.236" | 6 mm | 13 mm | 19.5 mm | 10 mm | 3 mm |
| 60020-4-1/4 | 4 mm | 1/4" | 0.314" | 8 mm | 15 mm | 19.5 mm | 15 mm | 3 mm |
| 60020-6-M5 | 6 mm | M5 | 0.157" | 4 mm | 10 mm | 23 mm | 12 mm | 2 mm |
| 60020-6-1/8 | 6 mm | 1/8" | 0.236" | 6 mm | 13 mm | 23.5 mm | 13 mm | 4 mm |
| 60020-6-1/4 | 6 mm | 1/4" | 0.314" | 8 mm | 15 mm | 23.5 mm | 15 mm | 4 mm |
| 60020-8-1/8 | 8 mm | 1/8" | 0.236" | 6 mm | 13 mm | 25.5 mm | 14 mm | 5 mm |
| 60020-8-1/4 | 8 mm | 1/4" | 0.314" | 8 mm | 15 mm | 23.5 mm | 15 mm | 6 mm |
| 60020-10-1/4 | 10 mm | 1/4" | 0.314" | 8 mm | 16 mm | 30 mm | 17 mm | 8 mm |
| 60020-10-3/8 | 10 mm | 3/8" | 0.354" | 9 mm | 20 mm | 27 mm | 17 mm | 8 mm |
| 60020-10-1/2 | 10 mm | 1/2" | 0.393" | 10 mm | 17 mm | 30 mm | 22 mm | 8 mm |
| 60020-12-3/8 | 12 mm | 3/8" | 0.354" | 9 mm | 21 mm | 34 mm | 21 mm | 8 mm |
| 60020-12-1/2 | 12 mm | 1/2" | 0.393" | 10 mm | 25 mm | 31 mm | 22 mm | 10 mm |
