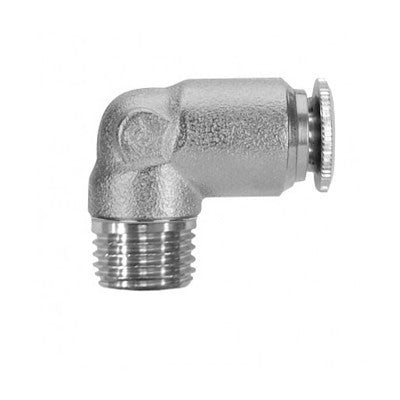

58100-6-M10x1 by AIGNEP | 58 Series | Fixed Elbow | Grease Fitting | 6 mm Tube x Male M10x1 | 90° Elbow | Pack of 10
58100-6-M10x1 by AIGNEP | 58 Series | Fixed Elbow | Grease Fitting | 6 mm Tube x Male M10x1 | 90° Elbow | Pack of 10

58100-6-M10x1 by AIGNEP | 58 Series | Fixed Elbow | Grease Fitting | 6 mm Tube x Male M10x1 | 90° Elbow | Pack of 10

Sale price$36.86

Package Quantity: 10 EA

Buy More, Save More!
Quantity Price Each
10–39 $34.65
40–79 $31.33
80+ $27.65
Discounts applied in cart/checkout.

Product Data:

Series:
  • 58 Series
Shape:

90 Degree

Material(s):
  • Nickel-Plated Brass

Fixed Elbow - Grease Fitting

Pressure Rating: 0-435 PSI for air (0-2175 PSI for fluids)
Temperature Range: -22 ° F - 302 ° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Water, Oil, Grease
Body: Nickel Plated Brass
Thread Seal: HNBR

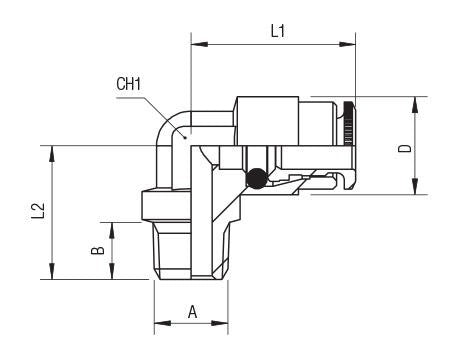

Product Number Tube A B L1 L2 CH1 D
58100-4-M6x1 4 mm M6 x 1 6 mm 18 mm 15 mm 8 mm 10.5 mm
58100-4-M8x1 4 mm M8 x 1 6 mm 18 mm 15 mm 8 mm 10.5 mm
58100-4-M10x1 4 mm M10 x 1 6.5 mm 18 mm 15 mm 8 mm 10.5 mm
58100-4-1/8 4 mm 1/8" 7.5 mm 18 mm 15 mm 8 mm 10.5 mm
58100-6-M6x1 6 mm M6 x 1 6 mm 21 mm 17 mm 10 mm 13 mm
58100-6-M8x1 6 mm M8 x 1 6 mm 21 mm 17 mm 10 mm 13 mm
58100-6-M10x1 6 mm M10 x 1 6.5 mm 21 mm 17 mm 10 mm 13 mm
58100-6-1/8 6 mm 1/8" 7.5 mm 21 mm 17.5 mm 10 mm 13 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
