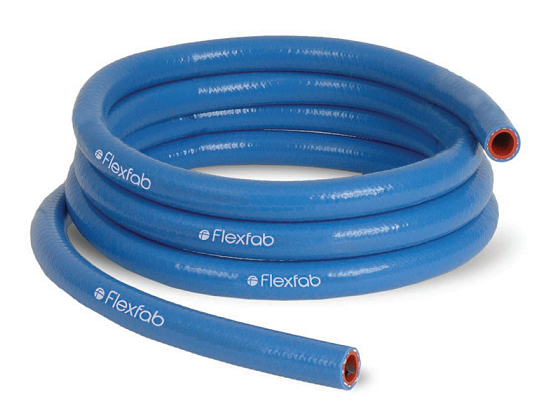

5526-050x250 by FlexFab | Series 5526 | 1-ply Standard Heater Hose | 0.50" ID | 0.83" OD | Blue | 250ft Spool
Package Quantity: 250 FT
Buy more, save moreDiscounts applied in cart/checkout.
Silicone Heater Hose
Series 5526 Standard Heater Hose
Blue silicone heater hose with 1 ply of nylon fiber reinforcement, sold in 25 ft and 50 ft boxes and on wooden spools.
1
What is this hose used for?
- Resistant to coolant additives
- Resists hardening, cracking, cold leaks, aging and many chemicals
- Ideal for extreme temperature and various pressure ranges where high performance levels are required
2
What are the key specifications?
Construction
Silicone hose with 1 ply of nylon fiber reinforcement
Cover
Blue
Standards
Meets or exceeds SAE J20 R3 Class A and TMC RP303B Class I Grade II
Temperature Range
-65°F (-54°C) to +350°F (+177°C)
Wall Thickness
Standard wall, .140" / .170"
Working Pressure
1/3 of the burst pressure
Bend Radius
5 times the hose ID
Lengths
25 ft and 50 ft boxes; longer lengths on wooden spools
3
Which sizes are available?
| Part Number | Inside Diameter | Outside Diameter | Actual Burst Pressure | Burst Pressure — SAE J20 R3 | Burst Pressure — TMC | Weight | Length | Lined Worm Gear Clamp |
|---|---|---|---|---|---|---|---|---|
| 5526-025x25 | 0.25" | 0.58" | 320 PSI | 250 PSI | 125 PSI | 0.111 lbs/ft | 25 ft Box | — |
| 5526-025x50 | 0.25" | 0.58" | 320 PSI | 250 PSI | 125 PSI | 0.111 lbs/ft | 50 ft Box | — |
| 5526-025x250 | 0.25" | 0.58" | 320 PSI | 250 PSI | 125 PSI | 0.111 lbs/ft | 250 ft Spool | — |
| 5526-025x800 | 0.25" | 0.58" | 320 PSI | 250 PSI | 125 PSI | 0.111 lbs/ft | 800 ft Spool | — |
| 5526-031x25 | 0.31" | 0.64" | 310 PSI | 250 PSI | 125 PSI | 0.128 lbs/ft | 25 ft Box | — |
| 5526-031x50 | 0.31" | 0.64" | 310 PSI | 250 PSI | 125 PSI | 0.128 lbs/ft | 50 ft Box | — |
| 5526-031x600 | 0.31" | 0.64" | 310 PSI | 250 PSI | 125 PSI | 0.128 lbs/ft | 600 ft Spool | — |
| 5526-038x25 | 0.38" | 0.71" | 310 PSI | 250 PSI | 125 PSI | 0.145 lbs/ft | 25 ft Box | FLX2582-0006 |
| 5526-038x50 | 0.38" | 0.71" | 310 PSI | 250 PSI | 125 PSI | 0.145 lbs/ft | 50 ft Box | FLX2582-0006 |
| 5526-038x250 | 0.38" | 0.71" | 310 PSI | 250 PSI | 125 PSI | 0.145 lbs/ft | 250 ft Spool | FLX2582-0006 |
| 5526-038x600 | 0.38" | 0.71" | 310 PSI | 250 PSI | 125 PSI | 0.145 lbs/ft | 600 ft Spool | FLX2582-0006 |
| 5526-050x25 | 0.50" | 0.83" | 310 PSI | 250 PSI | 125 PSI | 0.181 lbs/ft | 25 ft Box | FLX2582-0006 |
| 5526-050x50 | 0.50" | 0.83" | 310 PSI | 250 PSI | 125 PSI | 0.181 lbs/ft | 50 ft Box | FLX2582-0006 |
| 5526-050x250 | 0.50" | 0.83" | 310 PSI | 250 PSI | 125 PSI | 0.181 lbs/ft | 250 ft Spool | FLX2582-0006 |
| 5526-050x500 | 0.50" | 0.83" | 310 PSI | 250 PSI | 125 PSI | 0.181 lbs/ft | 500 ft Spool | FLX2582-0006 |
| 5526-062x25 | 0.63" | 0.96" | 300 PSI | 250 PSI | 125 PSI | 0.216 lbs/ft | 25 ft Box | FLX2582-0008 |
| 5526-062x50 | 0.63" | 0.96" | 300 PSI | 250 PSI | 125 PSI | 0.216 lbs/ft | 50 ft Box | FLX2582-0008 |
| 5526-062x250 | 0.63" | 0.96" | 300 PSI | 250 PSI | 125 PSI | 0.216 lbs/ft | 250 ft Spool | FLX2582-0008 |
| 5526-062x400 | 0.63" | 0.96" | 300 PSI | 250 PSI | 125 PSI | 0.216 lbs/ft | 400 ft Spool | FLX2582-0008 |
| 5526-075x25 | 0.75" | 1.08" | 300 PSI | 200 PSI | 125 PSI | 0.25 lbs/ft | 25 ft Box | FLX2582-0010 |
| 5526-075x50 | 0.75" | 1.08" | 300 PSI | 200 PSI | 125 PSI | 0.25 lbs/ft | 50 ft Box | FLX2582-0010 |
| 5526-075x250 | 0.75" | 1.08" | 300 PSI | 200 PSI | 125 PSI | 0.25 lbs/ft | 250 ft Spool | FLX2582-0010 |
| 5526-075x300 | 0.75" | 1.08" | 300 PSI | 200 PSI | 125 PSI | 0.25 lbs/ft | 300 ft Spool | FLX2582-0010 |
| 5526-087x25 | 0.88" | 1.21" | 250 PSI | 175 PSI | 125 PSI | 0.287 lbs/ft | 25 ft Box | FLX2582-0012 |
| 5526-087x50 | 0.88" | 1.21" | 250 PSI | 175 PSI | 125 PSI | 0.287 lbs/ft | 50 ft Box | FLX2582-0012 |
| 5526-087x200 | 0.88" | 1.21" | 250 PSI | 175 PSI | 125 PSI | 0.287 lbs/ft | 200 ft Spool | FLX2582-0012 |
| 5526-100x25 | 1.00" | 1.33" | 250 PSI | 175 PSI | 125 PSI | 0.324 lbs/ft | 25 ft Box | FLX2582-0016 |
| 5526-100x50 | 1.00" | 1.33" | 250 PSI | 175 PSI | 125 PSI | 0.324 lbs/ft | 50 ft Box | FLX2582-0016 |
| 5526-100x200 | 1.00" | 1.33" | 250 PSI | 175 PSI | 125 PSI | 0.324 lbs/ft | 200 ft Spool | FLX2582-0016 |
| 5526-125x25 | 1.25" | 1.58" | 200 PSI | 175 PSI | 125 PSI | 0.385 lbs/ft | 25 ft Box | FLX2582-0020 |
| 5526-125x50 | 1.25" | 1.58" | 200 PSI | 175 PSI | 125 PSI | 0.385 lbs/ft | 50 ft Box | FLX2582-0020 |
| 5526-125x150 | 1.25" | 1.58" | 200 PSI | 175 PSI | 125 PSI | 0.385 lbs/ft | 150 ft Spool | FLX2582-0020 |
⚠ NOTE: Continuous lengths are not guaranteed. If continuous lengths are required, please contact customer service for price and availability.
Specifications for reference only. Specific test data available on request.
How is this product sold?
Sold in 25 ft and 50 ft boxes, with longer lengths available on standard wooden spools.
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
103
Tubing Construction:
Cover Construction:
Specifications and Approvals:
