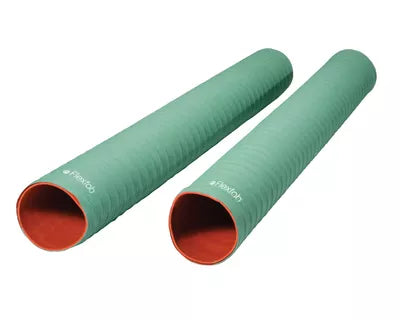

5508-350X12 by FlexFab | Series 5508 | 2-ply Wire Reinforced Coolant Hose | 3.50" x 3.92" OD | Green | 12ft Length
WARNING: This product may take 5-7 weeks to ship.
Package Quantity: 12 units
Buy more, save moreDiscounts applied in cart/checkout.
Silicone Coolant Hose
Series 5508 2-Ply Wire Reinforced Coolant Hose
Green silicone coolant hose with 2 plies of polyester reinforcement and a helical wire, built for vacuum and forced-curvature connections.
1
What is this hose used for?
- Heavy-duty pressure connections in hostile engine environments
- Extreme temperature and varied pressure ranges where high performance is required
- Connections with high vacuum and/or some forced curvature
- Resists hardening, cracking, cold leaks, aging and many chemicals
2
What are the key specifications?
Construction
Silicone hose with 2 plies of polyester reinforcement and a helical wire
Cover
Green
Standards
Meets or exceeds SAE J20 R1 Class A
Temperature Range
-65°F (-54°C) to +350°F (+177°C)
Wall Thickness
.130" / .180" at the hose ends, exclusive of wire gauge
Working Pressure
1/3 of the burst pressure
Negative Pressure
-10 PSI
Lengths
3 ft; 12 ft in all sizes except 6.00"
3
Which sizes are available?
| 3 ft Length | 12 ft Length | Inside Diameter | Outside Diameter | Burst Pressure | Max. Negative Pressure | Bend Radius | Weight |
|---|---|---|---|---|---|---|---|
| 5508-050 | 5508-050X12 | 0.50" | 0.92" | 600 PSI | 10 PSI | 2.00" | 0.17 lbs/ft |
| 5508-062 | 5508-062X12 | 0.63" | 1.05" | 600 PSI | 10 PSI | 2.25" | 0.21 lbs/ft |
| 5508-075 | 5508-075X12 | 0.75" | 1.17" | 600 PSI | 10 PSI | 2.50" | 0.23 lbs/ft |
| 5508-087 | 5508-087X12 | 0.88" | 1.30" | 550 PSI | 10 PSI | 2.75" | 0.26 lbs/ft |
| 5508-100 | 5508-100X12 | 1.00" | 1.42" | 550 PSI | 10 PSI | 3.00" | 0.30 lbs/ft |
| 5508-125 | 5508-125X12 | 1.25" | 1.67" | 525 PSI | 10 PSI | 3.50" | 0.36 lbs/ft |
| 5508-150 | 5508-150X12 | 1.50" | 1.92" | 500 PSI | 10 PSI | 4.00" | 0.43 lbs/ft |
| 5508-175 | 5508-175X12 | 1.75" | 2.17" | 475 PSI | 10 PSI | 4.50" | 0.51 lbs/ft |
| 5508-200 | 5508-200X12 | 2.00" | 2.42" | 450 PSI | 10 PSI | 5.00" | 0.56 lbs/ft |
| 5508-225 | 5508-225X12 | 2.25" | 2.67" | 400 PSI | 10 PSI | 5.50" | 0.65 lbs/ft |
| 5508-250 | 5508-250X12 | 2.50" | 2.92" | 350 PSI | 10 PSI | 6.00" | 0.74 lbs/ft |
| 5508-275 | 5508-275X12 | 2.75" | 3.17" | 325 PSI | 10 PSI | 6.50" | 0.79 lbs/ft |
| 5508-300 | 5508-300X12 | 3.00" | 3.42" | 300 PSI | 10 PSI | 7.00" | 0.85 lbs/ft |
| 5508-350 | 5508-350X12 | 3.50" | 3.92" | 275 PSI | 10 PSI | 8.00" | 1.09 lbs/ft |
| 5508-400 | 5508-400X12 | 4.00" | 4.42" | 250 PSI | 10 PSI | 9.00" | 1.19 lbs/ft |
| 5508-600 | — | 6.00" | 6.42" | 125 PSI | 10 PSI | 13.00" | 1.84 lbs/ft |
Specifications for reference only. Specific test data available on request.
How is this product sold?
Sold in 3 ft lengths. 12 ft lengths are also available — their part numbers end in X12.
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
Specifications and Approvals:
