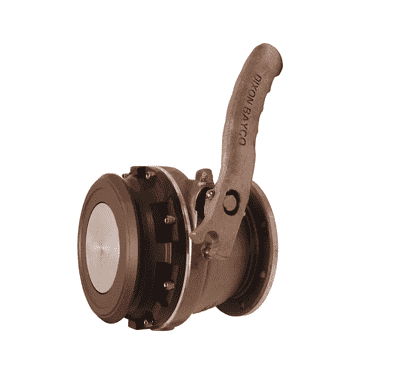

5204NG Dixon Valve Aluminum Load/Unload API Valve, without Sight Glass, Fixed Handle, Baylast Seal - 7in Length

5204NG Dixon Valve Aluminum Load/Unload API Valve, without Sight Glass, Fixed Handle, Baylast Seal - 7in Length

Sale price$567.32

Swivels & Rack Equipment - API Valves - API Load/Unload Valve - Aluminum

Buy More, Save More!
Quantity Price Each
5–14 $533.28
15–29 $482.22
30+ $425.49
Discounts applied in cart/checkout.

Product Data:
Applications:
  • Used for bottom loading and unloading of petroleum tankers, Load/unload valve permits both terminal loading, and fuel unloading through the valve.
Features:
  • Ergonomically curved handle operates on a short 62 deg. degree stroke.
  • Any required maintenance is simplified, Dixon Bayco API Valves can be completely rebuilt without the need to remove the valve from the tanker.
  • Nose ring is anodized hard coat aluminum, which in most applications will provide years of trouble free service. Nose ring can be rotated to provide a fresh connection service.
  • Manufactured to American Petroleum Institute standard API RP-1004, which allows for positive connection to drop adapters and rack couplers such as the Dixon Bayco 5300/5400 series rack coupler.
  • Aluminum body with anodized hard coat aluminum nose ring and stainless steel hardware.
  • Fixed aluminum handle.
Part Number Seal Style Length Weight (Lbs.)
5204LNG Baylast™ Fixed handle (no sight glass) 7" 12.2800

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
