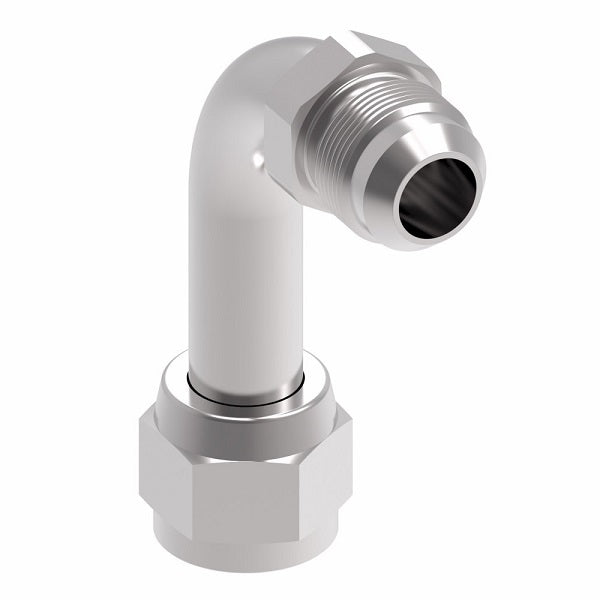

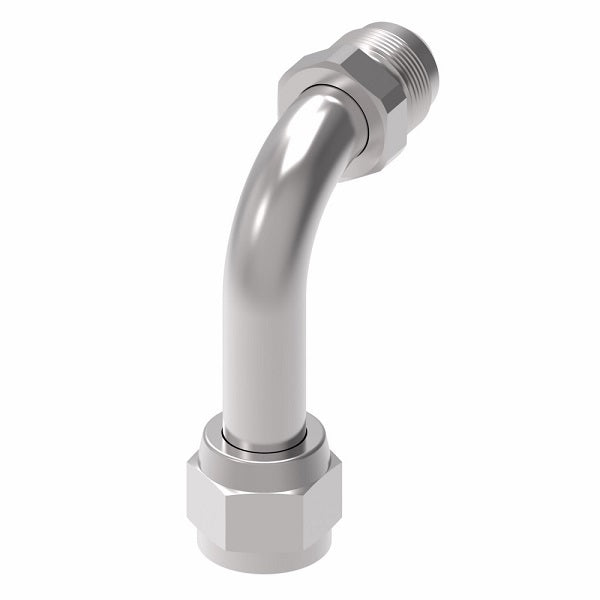

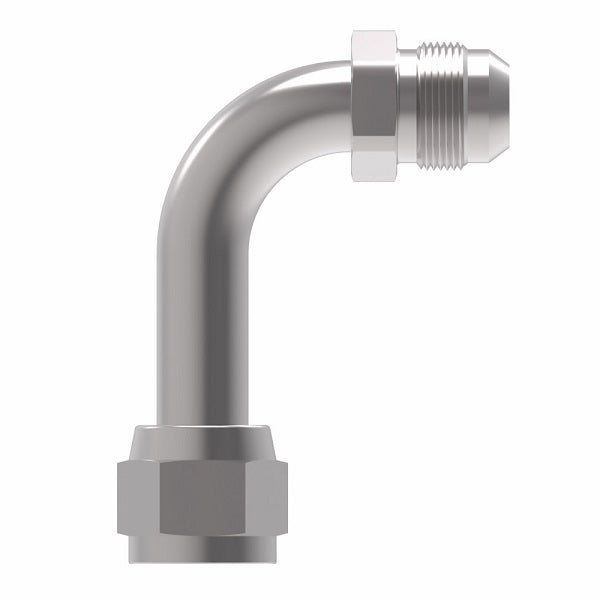

504095-12S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Long Drop 90° Elbow Adapter | -12 Female 37° JIC Flare Swivel x -12 Male 37° JIC Flare | Steel
504095-12S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Long Drop 90° Elbow Adapter | -12 Female 37° JIC Flare Swivel x -12 Male 37° JIC Flare | Steel
504095-12S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Long Drop 90° Elbow Adapter | -12 Female 37° JIC Flare Swivel x -12 Male 37° JIC Flare | Steel

504095-12S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Long Drop 90° Elbow Adapter | -12 Female 37° JIC Flare Swivel x -12 Male 37° JIC Flare | Steel

Sale price$32.34

Aeroquip® by Danfoss
37° JIC Flare Swivel/37° JIC Flare Long Drop Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $30.40
40–79 $27.49
80+ $24.26
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/4in Female JIC
  • 3/4in Male JIC
Material(s):
  • Steel
Part Number
Steel 		Tube O.D. Thread T1 Thread T2 A B
504095-4S 0.25" 7/16-20 7/16-20 1.80" 1.12"
504095-5S 0.31" 1/2-20/td> 1/2-20 1.77" 1.24"
504095-6S 0.38" 9/16-18 9/16-18 2.18" 1.31"
504095-8S 0.50" 3/4-16 3/4-16 2.43" 1.78"
504095-10S 0.63" 7/8-14 7/8-14 2.57" 2.07"
504095-12S 0.75" 1-1/16-12 1-1/16-12 3.73" 2.49"
504095-16S 1.00" 1-5/16-12 1-5/16-12 4.58" 2.79"
504095-20S 1.25" 1-5/8-12 1-5/8-12 5.53" 3.14"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
