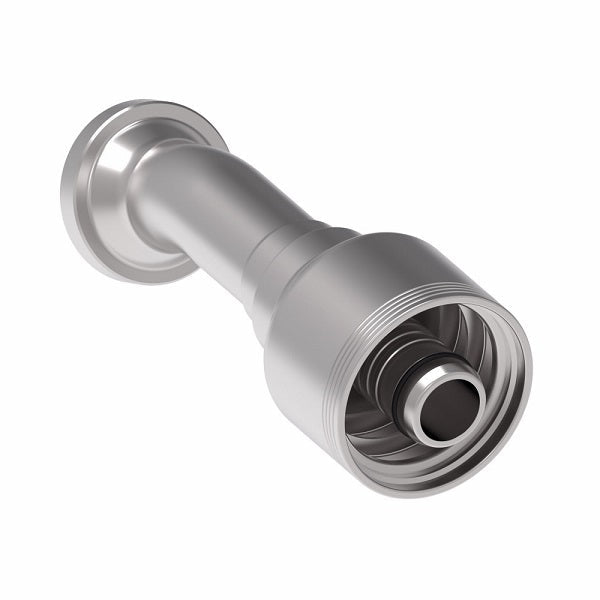

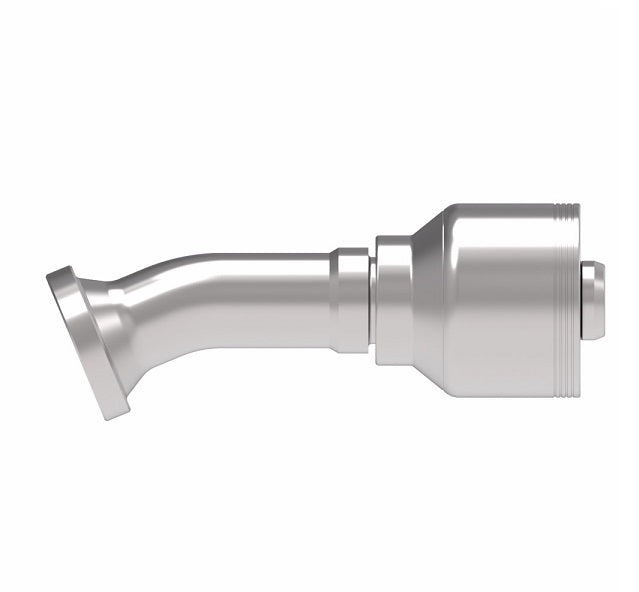

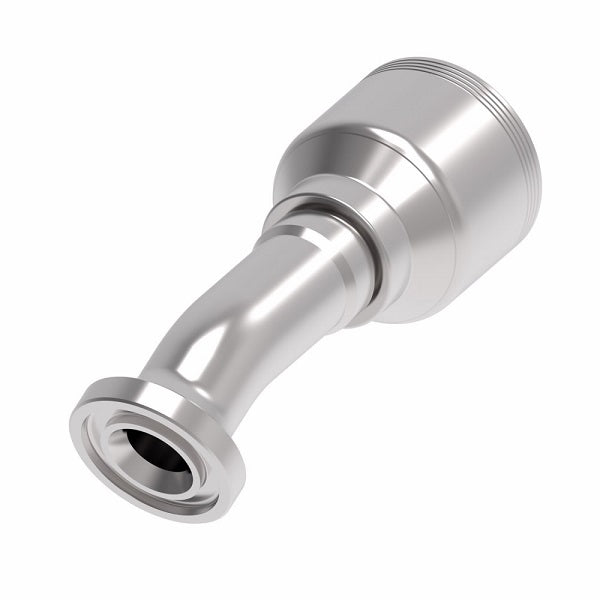

4S16FLD12 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 22.5° Elbow (FLD) Crimp Fitting | -16 Code 61 Flange x -12 Hose Barb | Steel
Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FLD) - 22.5° Elbow
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $81.12 |
| 20–59 | $73.36 |
| 60+ | $64.73 |
Discounts applied in cart/checkout.
Product Data:
Shape:
22.5 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | H | |
| Dash Size | DN | Dash Size | ||||||
| 4S8FLD8 | -08 | - | -08 | 1.19" | 3.28" | 2.20" | 0.36" | 0.36" |
| 4S12FLD8 | -12 | - | -08 | 1.50" | 3.87" | 2.80" | 0.37" | 0.44" |
| 4S12FLD12 | -12 | 19 | -12 | 1.50" | 4.78" | 3.35" | 0.56" | 0.46" |
| 4S16FLD12 | -16 | 25 | -12 | 1.75" | 5.38" | 3.96" | 0.56" | 0.53" |
| 4S16FLD16 | -16 | 25 | -16 | 1.75" | 5.50" | 3.94" | 0.76" | 0.53" |
| 4S20FLD16 | -20 | 25 | -16 | 2.00" | 6.33" | 4.77" | 0.76" | 0.64" |
| 4S20FLD20 | -20 | 31 | -20 | 2.00" | 6.98" | 4.81" | 0.99" | 0.64" |
| 4S24FLD20 | -24 | 31 | -20 | 2.38" | 6.83" | 4.63" | 0.99" | 0.67" |
| 4S24FLD24 | -24 | 38 | -24 | 2.37" | 8.91" | 5.84" | 1.22" | 0.74" |
| 4S32FLD24 | -32 | 38 | -24 | 2.81" | 10.50" | 7.43" | 1.22" | 0.93" |
| 4S32FLD32 | -32 | 51 | -32 | 2.81" | 10.61" | 7.54" | 1.66" | 0.93" |
