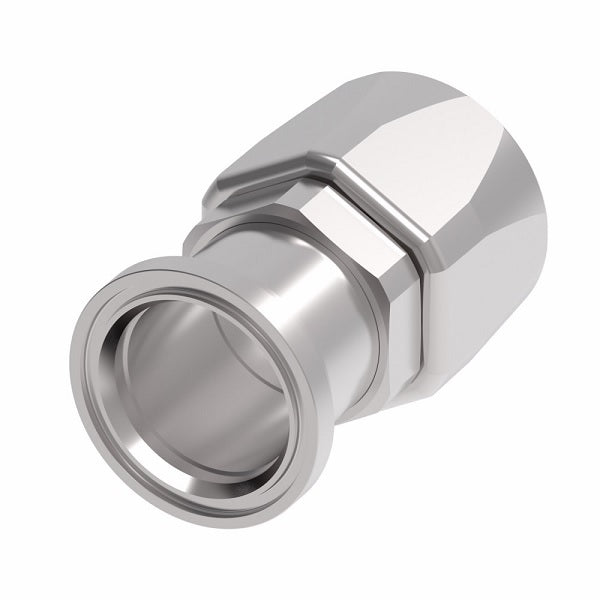

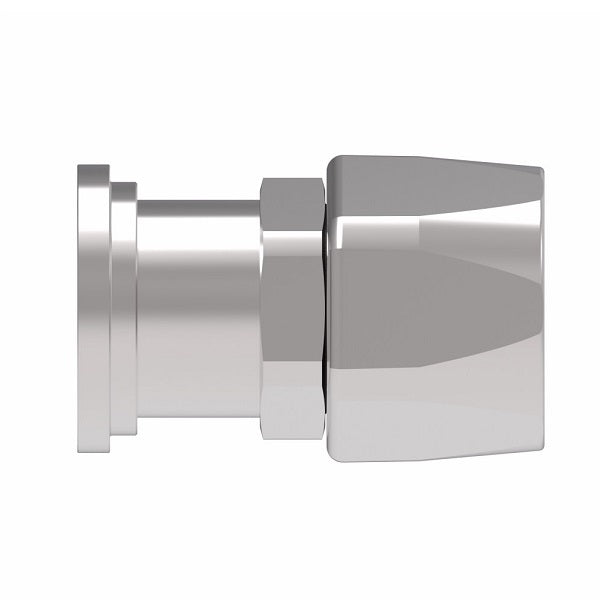

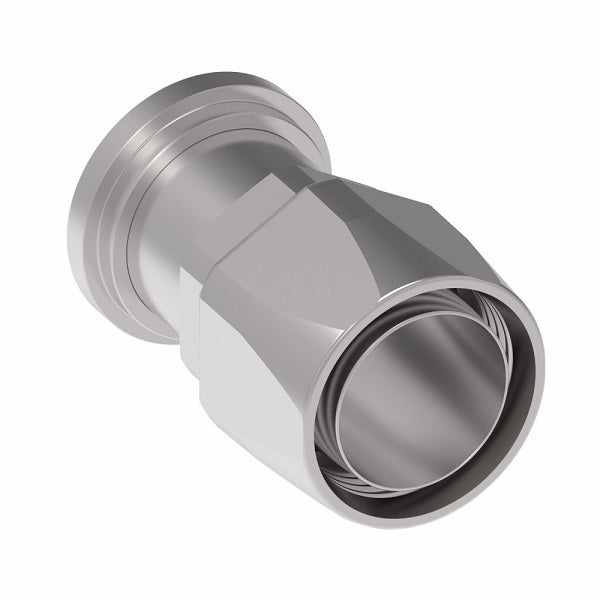

4775-40-32S Aeroquip by Danfoss | SAE Code 61 Split Flange (SAE J518) 100R5 Reusable Hose Fitting | -40 Code 61 Split Flange x -32 Reusable Hose End | Steel
AeroquipĀ® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - SAE Code 61 Split Flange (SAE J518) - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20ā29 | $188.08 |
| 30ā59 | $170.08 |
| 60+ | $150.07 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Brass & Steel Part Number |
Hose Size | Flange Head Diameter |
A | D | EĆ |
| 4775-12S | - | -12 | 1.50" | 3.16" | 1.59" | 0.55" |
| 4775-16S | - | -16 | 1.75" | 2.77" | 1.50" | 0.82" |
| 4775-20-16S | - | -16 | 2.00" | 3.36" | 2.09" | 0.82" |
| 4775-20S | - | -20 | 2.00" | 3.58" | 2.21" | 1.05" |
| 4775-32-20S | - | -20 | 2.81" | 3.64" | 2.28" | 1.05" |
| 4775-20-24S | - | -24 | 2.00" | 3.67" | 2.22" | 1.05" |
| 4775-24S | - | -24 | 2.38" | 4.02" | 2.56" | 1.28" |
| 4775-32-24S | - | -24 | 2.81" | 4.02" | 2.56" | 1.28" |
| 4775-32S | - | -32 | 2.81" | 4.92" | 3.08" | 1.75" |
| 4775-40-32S | - | -32 | 3.31" | 4.98" | 3.14" | 1.75" |
| - | 39-4775-40 | -40 | - | 5.36" | 3.45" | 2.21" |
