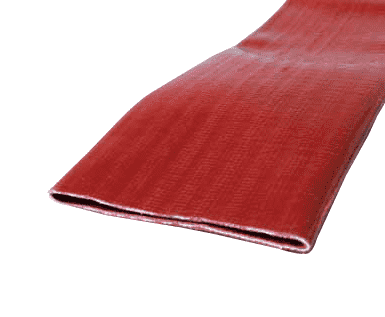

4504-1500 by Jason Industrial | 4504 Series | Water Discharge Hose | 115 PSI | 1-1/2" ID | 0.076" Wall Thickness | Wine Red | PVC | 300ft

4504-1500 by Jason Industrial | 4504 Series | Water Discharge Hose | 115 PSI | 1-1/2" ID | 0.076" Wall Thickness | Wine Red | PVC | 300ft

Sale price$389.10

Jason Industrial Inc. Hose - Water Hose - 4504 Wine Red PVC Water Discharge Hose & Assemblies - Medium Duty

Package Quantity: 300 FT

Buy More, Save More!
Quantity Price Each
5–14 $365.75
15–29 $330.74
30+ $291.83
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4504 Series
Color(s):
  • Red
Internal Diameter:
  • 1.50in

SPECIFICATIONS

Application: For general purpose water discharge in construction, agriculture and drip irrigation. SAE Rating: N/A
Other Ratings: N/A Tube: Wine Red, PVC
Reinforcement: Knitted Polyester Yarn Cover: Wine Red, PVC
Temperature Range: -14 deg F (-26 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo WP XX (PSI) ID
Other Features:
  • Medium duty hose
  • Rolls flat for convenient storage
  • Homogeneous construction eliminates tube and cover separation
  • Maximum bonding is due to the tube and cover being extruded simultaneously
Part Number I.D. Wall Thickness Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m ft
Uncoupled - Bulk
4504-1500 1-1/2" 38.10mm 0.076" 1.93mm Knitted 115 PSI 7.93 BAR N/A 0.21 lb./ft. 0.31 KG/m 300ft
4504-2000 2" 50.80mm 0.076" 1.93mm Knitted 115 PSI 7.93 BAR N/A 0.25 lb./ft. 0.37 KG/m 300ft
4504-2500 2-1/2" 63.50mm 0.079" 2.01mm Knitted 115 PSI 7.93 BAR N/A 0.29 lb./ft. 0.43 KG/m 300ft
4504-3000 3" 76.20mm 0.079" 2.01mm Knitted 100 PSI 6.89 BAR N/A 0.39 lb./ft. 0.58 KG/m 300ft
4504-4000 4" 101.60mm 0.081" 2.06mm Knitted 100 PSI 6.86 BAR N/A 0.60 lb./ft. 0.89 KG/m 300ft
4504-6000 6" 152.40mm 0.112" 2.84mm Knitted 75 PSI 5.17 BAR N/A 1.15 lb./ft. 1.71 KG/m 300ft
4504-8000 8" 203.20mm 0.124" 3.15mm Knitted 60 PSI 4.14 BAR N/A 1.20 lb./ft. 1.79 KG/m 300ft
Part Number I.D. Coupling Reinforcement Max. Working Press. @ 68 deg. F Weight Standard Length
in. mm PSI BAR lb. KG ft
Cut - Coupled - Coiled - Tied
4504-2000-050AB 2" 50.80mm 2" AB Pin Lug (M x F) Knitted 115 PSI 7.93 BAR 12.00 lb./ft. 17.80 KG/m 50ft
4504-3000-050AB 3" 76.20mm 3" AB Pin Lug (M x F) Knitted 100 PSI 6.89 BAR 22.00 lb./ft. 32.60 KG/m 50ft
4504-2000-050CE 2" 50.80mm 2" Aluminum Cam Lock (C x E) Knitted 115 PSI 7.93 BAR 12.00 lb./ft. 17.80 KG/m 50ft
4504-3000-050CE 2" 50.80mm 3" Aluminum Cam Lock (C x E) Knitted 100 PSI 6.89 BAR 22.00 lb./ft. 32.60 KG/m 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
