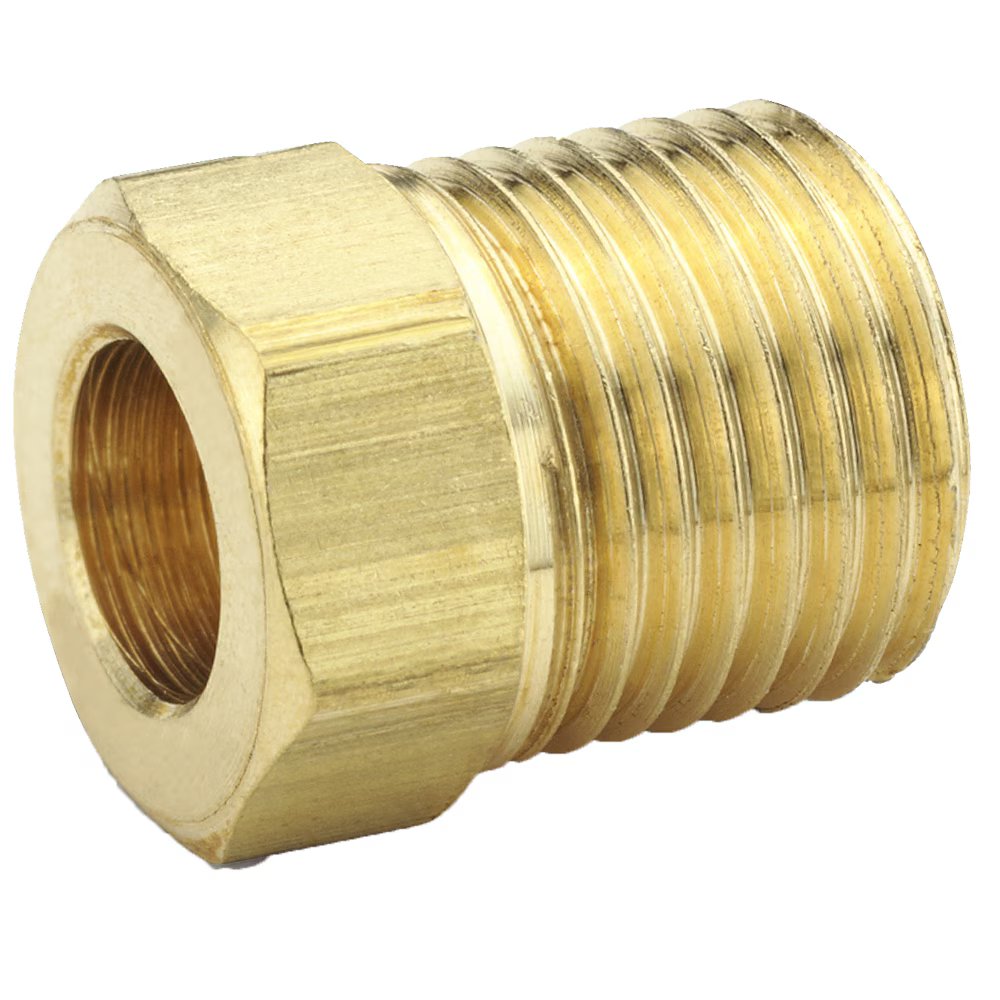

41IF-4 by Parker | Inverted Flare Fittings | 1/4" Inverted Flare | 7/16" Hex | .56" Length | Nut | Straight | Brass | Pack of 50
by Parker Hannifin
Inverted Flared Fittings:Nut 41IF
Package Quantity: 50 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $107.80 |
| 20–59 | $97.48 |
| 60+ | $86.01 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Temperature Range: | -65° to +250° F (-53.8° to +121.1° C) |
| Pressure Range: | See Chart Below |
 |
|
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Straight Thread | Hex (C) | L | D |
| 41IF-2 | 1/8" | 5/16"-28 | 5/16" | .52" | .133" |
| 41IF-3 | 3/16" | 3/8"-24 | 3/8" | .56" | .196" |
| 41IF-4 | 1/4" | 7/16"-24 | 7/16" | .56" | .259" |
| 41IF-5 | 5/16" | 1/2"-20 | 1/2" | .62" | .321" |
| 41IF-6 | 3/8" | 5/8"-18 | 5/8" | .66" | .384" |
| 41IF-8 | 1/2" | 3/4"-18 | 3/4" | .74" | .508" |
| 41IF-10 | 5/8" | 7/8"-18 | 7/8" | .80" | .633" |
| 41IFS-3 (Steel Material) | 3/16" | 3/8"-24 | 3/8" | .56" | .196" |
