41230-1012 by Garlock | Style 1298 Valve Stem Packing | 0.188in | 1lb Spool
Garlock

41230-1012 by Garlock | Style 1298 Valve Stem Packing | 0.188in | 1lb Spool

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:
  • Flexible core, braided valve packing that combines two proven Garlock yarns to provide premium service in high temperature and pressure valve stem services.

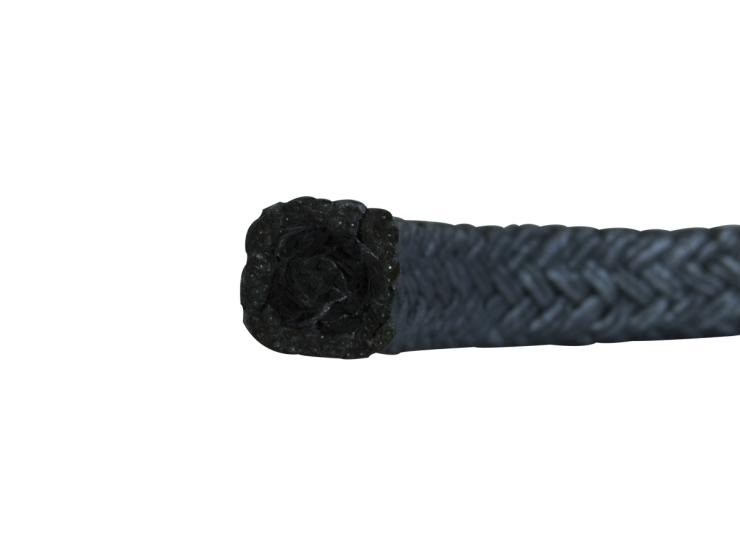

  • This proprietary product employs a PBI® yarn encapsulating INCONEL® alloy wire braided over a LATTICE BRAID® carbon yarn core. The encapsulated INCONEL® wire eliminates stem wear, and the braided carbon yarn ensures a flexible core.
  • Excellent chemical resistance, greater core integrity, dimensional stability at high temperatures, and high abrasion resistance makes Style 1298 packing the choice for severe service conditions.
  • This packing will offer a steady performance over a wide range of temperature and pressure for your power generation application. It will stay conformable, flexible and will seal even under high glen load pressure.
  • The combination of high ends components used in the style 1298 allows the packing to conform to stem and bore to seal efficiently for a longer period. The Individually impregnated yarns enhance sealability, resistance to chemical and eliminate possible stem scoring to improve the equipment operation and life.
  • Remains dimensionally stable at high temperatures
  • Great resistance to chemical and solvent
  • Improve equipment operation and life.
Features & Benefits:
  • Encapsulated INCONEL® wire eliminates stem wear
  • Superior resistance to chemicals and solvents
  • Dimensional stability at high temperatures
  • Excellent Abrasion Resistance
  • Certifiable to less than 200 ppm leachable chlorides upon request
Specifications:
  • Material Classification: INCONEL wire-reinforced PBI over carbon yarn core
  • Lubrication: Graphite & tungsten disulfide
  • Construction: Braid over core
  • Rotary: No
  • Service Recip: No
  • Valve: Yes
  • Temperature: Atmosphere: +850° F (+455° C) ; Steam: +1200° F (+650° C)
  • Pressure: To 4500 psi (310 bar) Functionally tested to 4500 psi at 1200° steam
  • Shaft Speed: N/A
  • pH: 1 - 12
Applications:
  • Refineries
  • Chemical
  • Petrochemical
  • Power Generation
  • Severe Valve Stem Applications

Order Code
(Part Number)		 Style Size
(in.)		 Package Size Length per Spool
41230-1008 1298 .125" 1 lb. Spool 94.3 ft
41230-2008 1298 .125" 5 lb. Spool 94.3 ft
41230-1012 1298 .188" 1 lb. Spool 34.4 ft
41230-1012 1298 .188" 5 lb. Spool 34.4 ft
41230-1216 1298 .250" 2 lb. Spool 26.7 ft
41230-2016 1298 .250" 5 lb. Spool 26.7 ft
41230-1220 1298 .313" 2 lb. Spool 16.5 ft
41230-2020 1298 .313" 5 lb. Spool 16.5 ft
41230-1224 1298 .375" 2 lb. Spool 11.2 ft
41230-2024 1298 .375" 5 lb. Spool 11.2 ft
41230-2028 1298 .438" 5 lb. Spool 9.8 ft
41230-3028 1298 .438" 10 lb. Spool 9.8 ft
41230-2032 1298 .500" 5 lb. Spool 6.8 ft
41230-3032 1298 .500" 10 lb. Spool 6.8 ft
41230-2036 1298 .563" 5 lb. Spool 5.6 ft
41230-3036 1298 .563" 10 lb. Spool 5.6 ft
41230-2040 1298 .625" 5 lb. Spool 4.9 ft
41230-3040 1298 .625" 10 lb. Spool 4.9 ft
41230-3048 1298 .750" 10 lb. Spool 4.0 ft
41230-3056 1298 .875" 10 lb. Spool 3.0 ft
41230-3064 1298 1.000" 10 lb. Spool 2.4 ft
INCONEL® is a registered trademark of Huntington Alloys Corporation.
PBI® is a registered trademark of Celanese Fibers Corporation.
