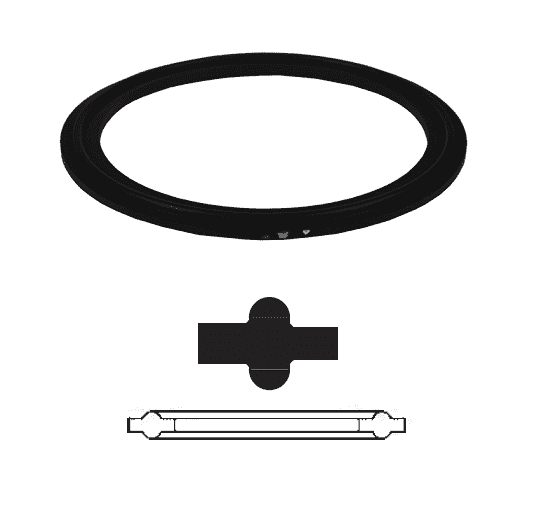

40MP-EZ150 Dixon Valve 1-1/2" EPDM Sanitary Metal Detectable Clamp Gasket
Minimum Order Quantity: 5 Units
Dixon Sanitary Fittings Sanitary Metal Detectable Clamp Gasket - EPDM Metal Detectable Clamp Gasket
Metal detectable gaskets are impregnated with stainless steel particles. The addition of stainless steel allows a gasket or gasket pieces to be found with metal detection equipment.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $2.19 |
| 40–79 | $1.98 |
| 80+ | $1.75 |
Discounts applied in cart/checkout.
Product Data:
Seal Material(s):
Special Properties:
| Features: | |||
|---|---|---|---|
|
| Part Number | Size | Dimensions
|
Weight (Lbs.) | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 40MP-EZ100 | 1" | 1.98" | 0.90" | 1.72" | 0.1000 |
| 40MP-EZ150 | 1-1/2" | 1.98" | 1.40" | 1.72" | 0.0090 |
| 40MP-EZ200 | 2" | 2.52" | 1.90" | 2.22" | 0.0100 |
| 40MP-EZ250 | 2-1/2" | 3.05" | 2.40" | 2.78" | 1.0000 |
| 40MP-EZ300 | 3" | 3.58" | 2.90" | 3.28" | 0.0200 |
| 40MP-EZ400 | 4" | 4.68" | 3.87" | 4.34" | 0.0300 |
| 40MP-EZ600 | 6" | 6.51" | 5.82" | 6.16" | - |
