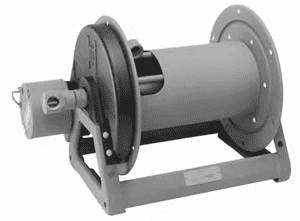

4030-17-18 by Hannay | #12-30 | 4000 Series | Manual Rewind Reel

4030-17-18 by Hannay | #12-30 | 4000 Series | Manual Rewind Reel

Sale price$842.21



4000 Manual Rewind Reels To handle single 3/4" or 1" I.D. hose.
Buy More, Save More!
Quantity Price Each
5–14 $791.68
15–29 $715.88
30+ $631.66
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4000 Series
Applications:
  • Fuel Dispensing
  • Fire Protection
  • Water Supply
  • Chemical Transfer
Features:
  • Lightweight compact reels designed for long length of hose.
  • Direct crank rewind is removable.
  • Manual reels include: cam-lock drag brake, spring actuated pin lock
  • Standard inlet 90 deg. ball bearing swivel joint 1" female NPT threads.
  • Standard outlet 1" female NPT threads.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 3/4" 1"
O.D. (in) 1-9/32" 1-9/16" A B E Crank E Power F Crank F Power X
4018-17-18 50' length 35' length 36 lbs. 15" 10" 16.5" 19" 27" 20.5" 13.5"
4024-17-18 100' length 50' length 46 lbs. 21" 16" 16.5" 19" 33" 26.5" 19.5"
4030-17-18 150' length 75' length 57 lbs. 27" 22" 16.5" 19" 39" 32.5" 25.5"
4038-17-18 200' length 100' length 70 lbs. 35" 30" 16.5" 19" 47" 40.5" 33.5"

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
