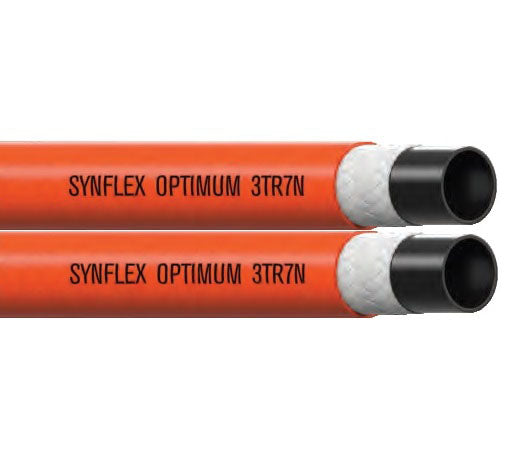

3TR7N-08-2-250BX Synflex Optimum by Danfoss | 3TR7N Twin Line Non-Conductive Thermoplastic Hydraulic Hose | SAE 100R7 | -08 Hose | Old Part # 37AL-08 | 250ft / Box (Two Pieces)

3TR7N-08-2-250BX Synflex Optimum by Danfoss | 3TR7N Twin Line Non-Conductive Thermoplastic Hydraulic Hose | SAE 100R7 | -08 Hose | Old Part # 37AL-08 | 250ft / Box (Two Pieces)

Sale price$3,263.25

Synflex Optimum by Danfoss
3TR7N Non-Conductive Thermoplastic Hydraulic Hose - SAE 100R7

3TR7N supersedes 3740, 37AL

92.2 ANSI (-4 thru -10)

Package Quantity: 250 FT

Buy More, Save More!
Quantity Price Each
2–3 $3,067.46
4–9 $2,936.93
10+ $2,610.60
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
  • Synflex Optimum
Series:
  • 3TR7N Series
Color(s):
  • Orange

SPECIFICATIONS

Applications: Agriculture, Horticulture, Chemical transfer, Foam systems, Food processing, Forestry delimber, General construction, General hydraulic systems, Lubrication systems, Marine steering, Utility vehicles and pickers, Rescue apparatus & tools, Water jetter drain/sewer
SAE Rating: SAE 100R7 Other Ratings: 92.2 ANSI (-4 thru -10)
Tube: Nylon Reinforcement: 1-textile braid
Cover: Nonstick polyurethane Temperature Range: For oil-based fluids: -40°C to +100°C (-40°F to +212°F)
For water-based fluids: -40°C to +66°C (-40°F to +150°F)
Approved Fittings: 4TA series, TTC/Z series with sleeve (FF91064), 902 series Part Number Key BC: Continuous length in box
BX: 2 lengths per box, no length less than 20 ft.
RL: Random length reel, 2 lengths per reel, no length less than 20 ft.
R: Continuous length on reel
Other Features:
  • UV / Ozone Protection: The thermoplastic polyurethane and polyester outer-cover resists ozone, ultraviolent light and aging.
  • Easier Routing and Installation: Eaton Synflex Optimum 100R7 and 100R8 hose covers were formulated to require 50% less routing force reducing the chance of kinking.
  • Custom Thermoforming: Ability to mold into configurations that match system design.
  • Higher Abrasion Resistance: The new TPU and polyester cover increases abrasion resistant by 10%.
  • Powerful Performance: Lift and handle heavy loads with hose power ranges extending from 1,015 psi to 5,000 psi.
  • Chemical Resistance: Thermoplastic composition paired with nylon lining prevents absorption of most oils and hydraulic fluids.
  • Flexible Design: Lightweight hose design drives performance efficiencies, reducing vehicle power requirements.
  • Lighter Weight: Synthetic reinforced thermoplastic hoses are about 2x lighter then equivalent wire braided rubber hose.
  • Bonding Capabilities: Synflex thermoplastic hoses can be permanently joined without the use of any mechanical devices.
  • System Cleanliness: Thermoplastic hose will not degrade or create contaminants in filters and valves to help you maintain a clean system.
  • Noise Reduction: Special reinforcements on the thermoplastic hoses help reduce machine noise.
50ft Box (Two Pieces)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
SAE ANSI
in. in. bar PSI bar PSI bar PSI in. kg/m lbs/ft
3TR7N-03-050BX -03 0.19" 0.425" - 3050 PSI - - - 12200 PSI 0.75" 50ft - 0.05 lbs/ft
3TR7N-04-050BX -04 0.25" 0.49" 192 bar 2800 PSI 207 bar 3000 PSI 759 bar 11000 PSI 1.25" 50ft 0,09 kg/m 0.06 lbs/ft
3TR7N-05-050BX -05 0.31" 0.57" 175 bar 2550 PSI 207 bar 3000 PSI 690 bar 10000 PSI 1.50" 50ft 0,13 kg/m 0.08 lbs/ft
3TR7N-06-050BX -06 0.38" 0.65" 157 bar 2300 PSI 207 bar 3000 PSI 621 bar 9000 PSI 2.00" 50ft 0,15 kg/m 0.10 lbs/ft
3TR7N-08-050BX -08 0.50" 0.82" 140 bar 2050 PSI 207 bar 3000 PSI 621 bar 9000 PSI 2.75" 50ft 0,21 kg/m 0.14 lbs/ft
3TR7N-10-050BX -10 0.63" 0.93" 105 bar 1525 PSI 140 bar 2050 PSI 421 bar 6100 PSI 4.00" 50ft 0,24 kg/m 0.16 lbs/ft
3TR7N-12-050BX -12 0.75" 1.04" 87 bar 1250 PSI - - 348 bar 5000 PSI 4.25" 50ft 0,26 kg/m 0.17 lbs/ft
3TR7N-16-050BX -16 1.00" 1.33" 70 bar 1000 PSI - - 280 bar 4000 PSI 7.50" 50ft 0,40 kg/m 0.27 lbs/ft
250ft / Box (Two Pieces)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
SAE ANSI
in. in. bar PSI bar PSI bar PSI in. kg/m lbs/ft
3TR7N-03-250BX -03 0.19" 0.425" - 3050 PSI - - - 12200 PSI 0.75" 250ft - 0.05 lbs/ft
3TR7N-04-250BX -04 0.25" 0.49" 192 bar 2800 PSI 207 bar 3000 PSI 759 bar 11000 PSI 1.25" 250ft 0,09 kg/m 0.06 lbs/ft
3TR7N-05-250BX -05 0.31" 0.57" 175 bar 2550 PSI 207 bar 3000 PSI 690 bar 10000 PSI 1.50" 250ft 0,13 kg/m 0.08 lbs/ft
3TR7N-06-250BX -06 0.38" 0.65" 157 bar 2300 PSI 207 bar 3000 PSI 621 bar 9000 PSI 2.00" 250ft 0,15 kg/m 0.10 lbs/ft
3TR7N-08-250BX -08 0.50" 0.82" 140 bar 2050 PSI 207 bar 3000 PSI 621 bar 9000 PSI 2.75" 250ft 0,21 kg/m 0.14 lbs/ft
3TR7N-10-250BX -10 0.63" 0.93" 105 bar 1525 PSI 140 bar 2050 PSI 421 bar 6100 PSI 4.00" 250ft 0,24 kg/m 0.16 lbs/ft
3TR7N-12-200BX -12 0.75" 1.04" 87 bar 1250 PSI - - 348 bar 5000 PSI 4.25" 200ft 0,26 kg/m 0.17 lbs/ft
3TR7N-16-200BX -16 1.00" 1.33" 70 bar 1000 PSI - - 280 bar 4000 PSI 7.50" 200ft 0,40 kg/m 0.27 lbs/ft
250ft / Box (One Continuous Piece)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
SAE ANSI
in. in. bar PSI bar PSI bar PSI in. kg/m lbs/ft
3TR7N-04-250BC -04 0.25" 0.49" 192 bar 2800 PSI 207 bar 3000 PSI 759 bar 11000 PSI 1.25" 250ft 0,09 kg/m 0.06 lbs/ft
3TR7N-05-250BC -05 0.31" 0.57" 175 bar 2550 PSI 207 bar 3000 PSI 690 bar 10000 PSI 1.50" 250ft 0,13 kg/m 0.08 lbs/ft
3TR7N-06-250BC -06 0.38" 0.65" 157 bar 2300 PSI 207 bar 3000 PSI 621 bar 9000 PSI 2.00" 250ft 0,15 kg/m 0.10 lbs/ft
3TR7N-08-250BC -08 0.50" 0.82" 140 bar 2050 PSI 207 bar 3000 PSI 621 bar 9000 PSI 2.75" 250ft 0,21 kg/m 0.14 lbs/ft
3TR7N-10-250BC -10 0.63" 0.93" 105 bar 1525 PSI 140 bar 2050 PSI 421 bar 6100 PSI 4.00" 250ft 0,24 kg/m 0.16 lbs/ft
3TR7N-12-200BC -12 0.75" 1.04" 87 bar 1250 PSI - - 348 bar 5000 PSI 4.25" 200ft 0,26 kg/m 0.17 lbs/ft
3TR7N-16-200BC -16 1.00" 1.33" 70 bar 1000 PSI - - 280 bar 4000 PSI 7.50" 200ft 0,40 kg/m 0.27 lbs/ft
500ft Reel (Two Pieces)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
SAE ANSI
in. in. bar PSI bar PSI bar PSI in. kg/m lbs/ft
3TR7N-03-500RL -03 0.19" 0.425" - 3050 PSI - - - 12200 PSI 0.75" 500ft - 0.05 lbs/ft
3TR7N-04-500RL -04 0.25" 0.49" 192 bar 2800 PSI 207 bar 3000 PSI 759 bar 11000 PSI 1.25" 500ft 0,09 kg/m 0.06 lbs/ft
3TR7N-05-500RL -05 0.31" 0.57" 175 bar 2550 PSI 207 bar 3000 PSI 690 bar 10000 PSI 1.50" 500ft 0,13 kg/m 0.08 lbs/ft
3TR7N-06-500RL -06 0.38" 0.65" 157 bar 2300 PSI 207 bar 3000 PSI 621 bar 9000 PSI 2.00" 500ft 0,15 kg/m 0.10 lbs/ft
3TR7N-08-500RL -08 0.50" 0.82" 140 bar 2050 PSI 207 bar 3000 PSI 621 bar 9000 PSI 2.75" 500ft 0,21 kg/m 0.14 lbs/ft
3TR7N-10-500RL -10 0.63" 0.93" 105 bar 1525 PSI 140 bar 2050 PSI 421 bar 6100 PSI 4.00" 500ft 0,24 kg/m 0.16 lbs/ft
3TR7N-12-500RL -12 0.75" 1.04" 87 bar 1250 PSI - - 348 bar 5000 PSI 4.25" 500ft 0,26 kg/m 0.17 lbs/ft
3TR7N-16-500RL -16 1.00" 1.33" 70 bar 1000 PSI - - 280 bar 4000 PSI 7.50" 500ft 0,40 kg/m 0.27 lbs/ft
Twin Line: 250ft / Box (Two Pieces)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
SAE ANSI
in. in. bar PSI bar PSI bar PSI in. kg/m lbs/ft
3TR7N-04-2-250BX -04 0.25" 0.49" 192 bar 2800 PSI 207 bar 3000 PSI 759 bar 11000 PSI 1.25" 250ft 0,09 kg/m 0.06 lbs/ft
3TR7N-06-2-250BX -06 0.38" 0.65" 157 bar 2300 PSI 207 bar 3000 PSI 621 bar 9000 PSI 2.00" 250ft 0,15 kg/m 0.10 lbs/ft
3TR7N-08-2-250BX -08 0.50" 0.82" 140 bar 2050 PSI 207 bar 3000 PSI 621 bar 9000 PSI 2.75" 250ft 0,21 kg/m 0.14 lbs/ft

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
