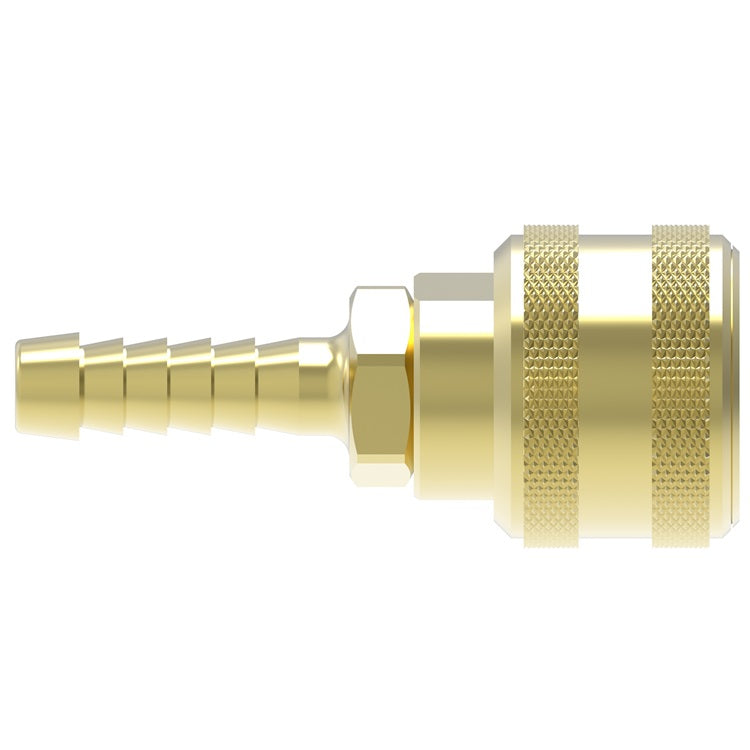

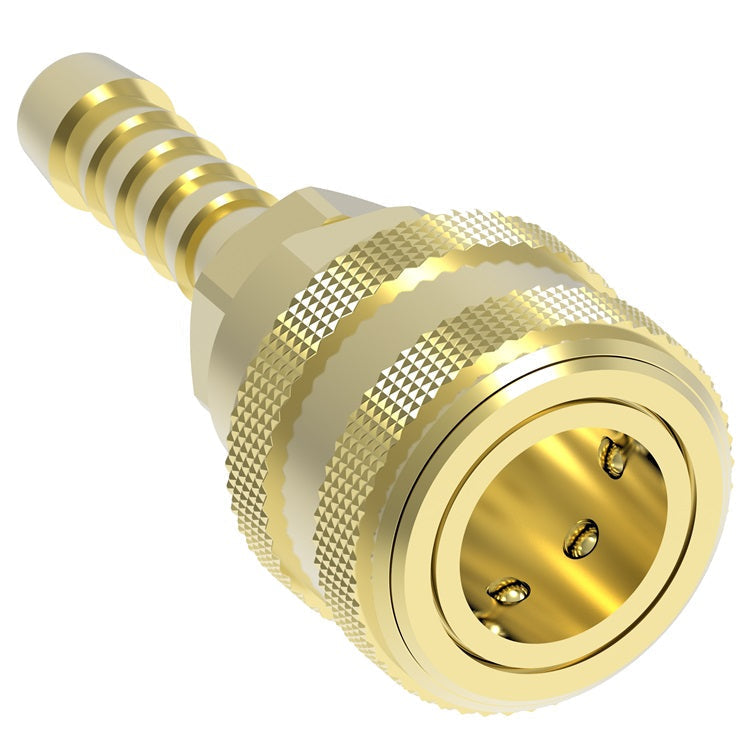

3600P Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3000 Series | Push-On Hose Barb End | 1/4" Hose ID x 1/4" Body Size | Socket | NBR Seal | Brass
3600P Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3000 Series | Push-On Hose Barb End | 1/4" Hose ID x 1/4" Body Size | Socket | NBR Seal | Brass
3600P Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3000 Series | Push-On Hose Barb End | 1/4" Hose ID x 1/4" Body Size | Socket | NBR Seal | Brass
Danfoss/Eaton

3600P Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3000 Series | Push-On Hose Barb End | 1/4" Hose ID x 1/4" Body Size | Socket | NBR Seal | Brass

Sale price$33.67

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 3000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 3000/4000/5000/6000 Series Industrial Interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids.

This series sets the industry standard for pin lock style pneumatic couplings.

Product Data:

Brand:
  • Hansen
Series:
  • 3000 Series
Shape:

Straight
Features:
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:
  • Industrial Breathing Air
  • General Pneumatics
  • Maintenance & Repair
  • Fluid Transfer
Materials:
  • Standard body material: Brass
  • Standard seal material: Nitrile (NBR)
Specifications:
  • All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
3000 1/4" 138 bar 2,000 psi 552 bar 8,000 psi 680 lpm 24 gpm
Interchangeability
All Sizes 1/4" & 1/2"
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)
Socket/Female
(Figure 1)
Socket/Female
(Figure 1A)
Plug/Male
(Figure 2)
Plug/Male
(Figure 2A)
3000 Series | Sockets
Part Number Coupling Type Body Size Hose ID End Type Material Figure Dimensions
A B
3600 Socket/Female 1/4" 1/4" Hose Barb Brass 1 2.63"
(66.80mm)		 1.19"
(30.23mm)
3600P Socket/Female 1/4" 1/4" Hose Barb Brass 1, 1A 2.40"
(60.96mm)		 1.19"
(30.23mm)
3700E Socket/Female 1/4" 3/8" Hose Barb Brass 1 2.63"
(66.80mm)		 1.19"
(30.23mm)
3700P Socket/Female 1/4" 3/8" Hose Barb Brass 1, 1A 2.47"
(62.74mm)		 1.19"
(30.23mm)
3000 Series | Plugs
Part Number Coupling Type Body Size Hose ID End Type Material Figure Dimensions
C D
16 Plug/Male 1/4" 1/4" Hose Barb Steel 2 2.22"
(56.39mm)		 0.50"
(12.70mm)
16G*** Plug/Male 1/4" 1/4" Hose Barb Steel 2 2.97"
(75.44mm)		 0.77"
(19.56mm)
16P Plug/Male 1/4" 1/4" Push-On Hose Barb Steel 2, 2A 2.00"
(50.80mm)		 0.58"
(14.73mm)
17 Plug/Male 1/4" 3/8" Hose Barb Steel 2 2.22"
(56.39mm)		 0.50"
(12.70mm)
17G*** Plug/Male 1/4" 3/8" Hose Barb Steel 2 2.96"
(75.18mm)		 0.77"
(19.56mm)
17P Plug/Male 1/4" 3/8" Push-On Hose Barb Steel 2, 2A 2.06"
(52.32mm)		 0.50"
(12.70mm)
18E Plug/Male 1/4" 5/16" Hose Barb Steel 2 2.22"
(56.39mm)		 0.50"
(12.70mm)
B17 Plug/Male 1/4" 3/8" Hose Barb Brass 2 2.22"
(56.39mm)		 0.50"
(12.70mm)
***With Bleeder Ball Check - Reduces Hose Whip
