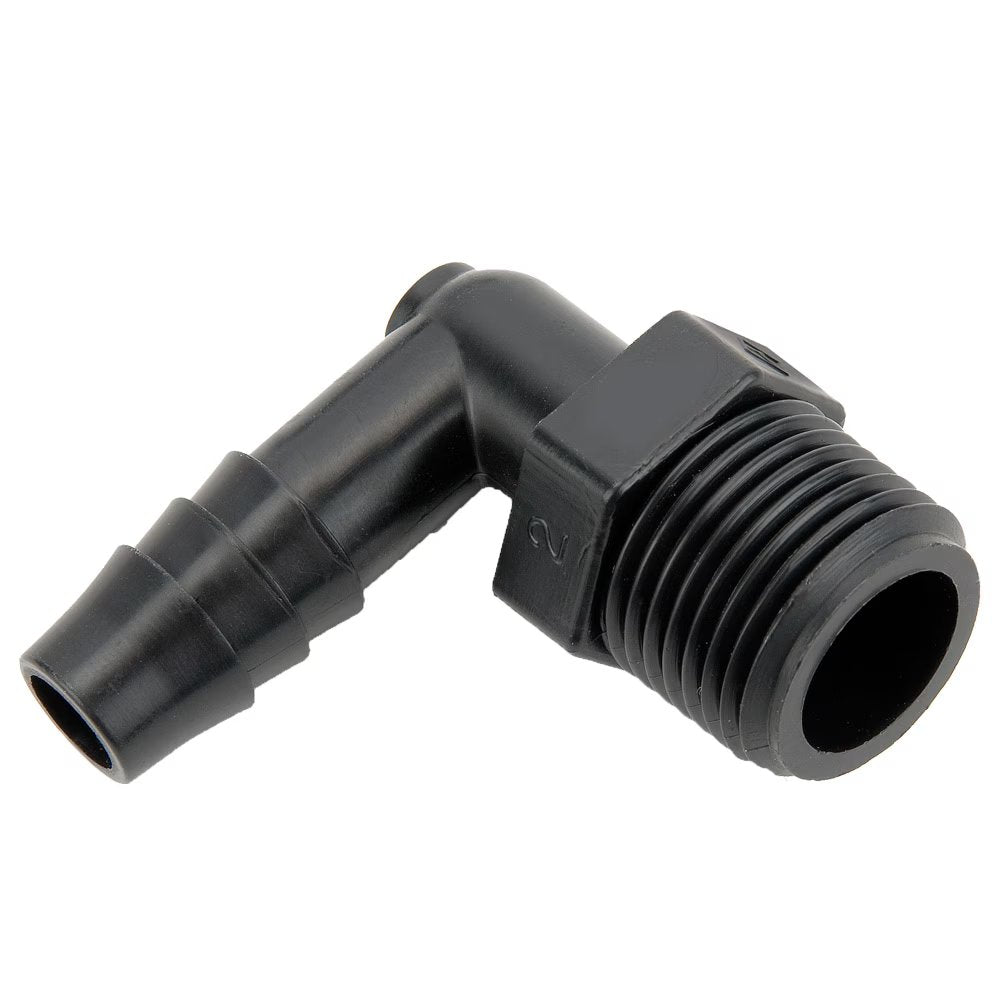

329HB-8-4PP by Parker | Threaded Fitting | 1/2" Barb x 1/4" Male NPT Pipe Thread | 9/16" Hex | 90° Elbow | Black | Polypropylene
Minimum Order Quantity: 10 units
by Parker Hannifin
Par-Barb® Fittings:Male Elbow 329HB
Product Data:
Brand:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Pressure Range: | Up to 125 PSI (8.6 bar) |
| Temperature Range: | Nylon: -40° to +200° F (-40° to +93.3° C) Polypropylene: 0° to +212° F (-12.2° to +100° C) |
| Compatible Tubing: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| White Nylon Part Number | Black Polypropylene Part Number | Tube Or Hose ID | NPT Pipe Thread | OD | Hex (C) | M | N | Flow Diameter (D) |
| 329HB-3-2N | 329HB-3-2PP | 3/16" | 1/8" | .25" | 7/16" | .76" | 1.06" | .12" |
| 329HB-3-4N | - | 3/16" | 1/4" | .25" | 9/16" | .76" | 1.17" | .12" |
| 329HB-4-2N | 329HB-4-2PP | 1/4" | 1/8" | .31" | 7/16" | 1.18" | 1.04" | .16" |
| 329HB-4-4N | 329HB-4-4PP | 1/4" | 1/4" | .31" | 9/16" | 1.18" | 1.16" | .22" |
| 329HB-4-6N | 329HB-4-6PP | 1/4" | 3/8" | .31" | 11/16" | 1.18" | 1.17" | .15" |
| 329HB-4-8N | 329HB-4-8PP | 1/416" | 1/2" | .32" | 7/8" | 1.18" | 1.30" | .15" |
| 329HB-6-2N | 329HB-6-2PP | 3/8" | 1/8" | .43" | 7/16" | 1.18" | 1.05" | .25" |
| 329HB-6-4N | 329HB-6-4PP | 3/8" | 1/4" | .43" | 9/16" | 1.18" | 1.16" | .25" |
| 329HB-6-6N | 329HB-6-6PP | 3/8" | 3/8" | .43" | 11/16" | 1.17" | 1.17" | .25" |
| 329HB-6-8N | 329HB-6-8PP | 3/8" | 1/2" | .43" | 7/8" | 1.18" | 1.28" | .25" |
| 329HB-8-4N | 329HB-8-4PP | 1/2" | 1/4" | .55" | 9/16" | 1.27" | 1.16" | .37" |
| 329HB-8-6N | 329HB-8-6PP | 1/2" | 3/8" | .56" | 11/16" | 1.26" | 1.16" | .37" |
| 329HB-8-8N | 329HB-8-8PP | 1/2" | 1/2" | .55" | 7/8" | 1.25" | 1.29" | .37" |
| 329HB-8-12N | 329HB-8-12PP | 1/2" | 3/4" | .55" | 1-1/8" | 1.30" | 1.89" | .37" |
| 329HB-10-6N | - | 5/8" | 3/8" | .67" | 11/16" | 1.277" | 1.18" | .47" |
| 329HB-10-8N | - | 5/8" | 1/2" | .68" | 7/8" | 1.30" | 1.73" | .48" |
| 329HB-10-12N | 329HB-10-12PP | 5/8" | 3/4" | .69" | 1-1/8" | 1.32" | 1.92" | .49" |
| 329HB-12-8N | 329HB-12-8PP | 3/4" | 1/2" | .81" | 7/8" | 1.51" | 1.74" | .58" |
| 329HB-12-12N | 329HB-12-12PP | 3/4" | 3/4" | .81" | 1-1/8" | 1.50" | 1.91" | .58" |
