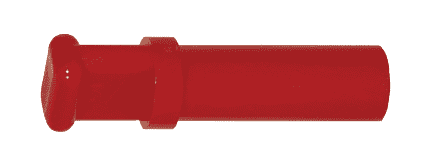

31261000 Dixon Valve Plastic Plug for Metric Push-In Fittings - 10mm Tube OD x 10mm Tube OD
Dixon

31261000 Dixon Valve Plastic Plug for Metric Push-In Fittings - 10mm Tube OD x 10mm Tube OD

Minimum Order Quantity: 5 Units

Sale price$8.29

Metric Push-In Fittings - Plugs On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.

Product Data:

Ends Configuration:
  • 10mm Push-to-Connect
  • 10mm Push-to-Connect
  • Some Ends Match
Material(s):
  • Plastic
Features:
  • Nickel-plated brass threads; black body is glass-filled nylon; Buna-N D seal; polypropylene release button; silicone free.
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
  • Working pressure: fittings rated to 290 PSI at ambient temperature.
  • Working temperature: -4 deg. F to 175 deg. F.
  • Pre-applied thread sealant on all tapered male pipe threads.
  • Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.
  • Vacuum capability: vacuum of 28" Hg (99% vacuum).
  • Gripping Ring Technology:
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
  • No tools required.
Part Number Tube OD Tube OD Material Seal PSI Min/Max Temp Package Quantity Weight (Lbs)
31260600 6mm 6mm Plastic Buna-N D Seal 290 (19.73 bar) -4 deg. F/ 175 deg. F (-20.00 deg. C / 79.44 deg. C) 10 0.1000
31261000 10mm 10mm Plastic Buna-N D Seal 290 (19.73 bar) -4 deg. F/ 175 deg. F (-20.00 deg. C / 79.44 deg. C) 10 0.2000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
