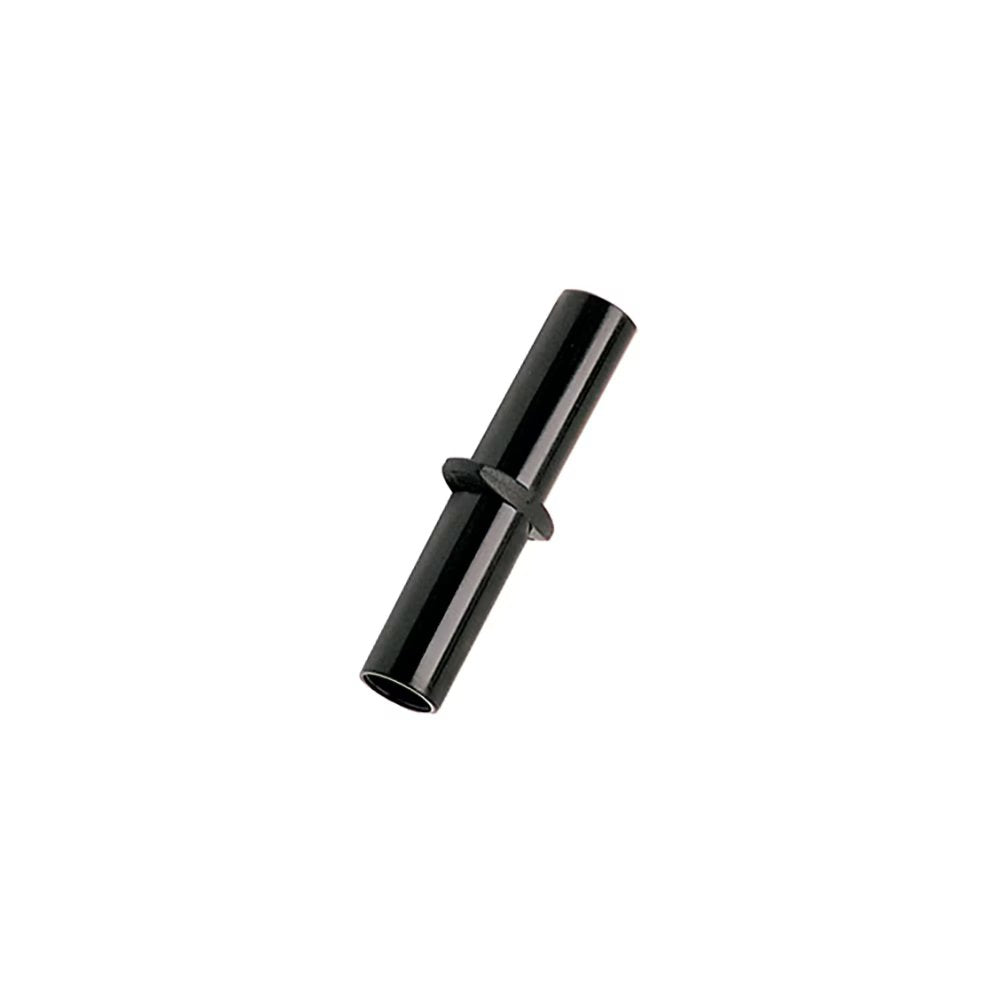

3120 10 00 by Parker | Legris Plug-In Fittings | 10 mm Stem x 10 mm Stem | 51.5 mm Length | Straight | Polymer | Pack of 10

3120 10 00 by Parker | Legris Plug-In Fittings | 10 mm Stem x 10 mm Stem | 51.5 mm Length | Straight | Polymer | Pack of 10

Sale price$40.48

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3120 Stem Connector

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $38.05
40–79 $34.41
80+ $30.36
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3120 Series
Shape:

Straight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD L L1 Kg
3120 04 00 4 mm 34.5 mm 12 mm .001 Kg
3120 06 00 6 mm 38.5 mm 14 mm .001 Kg
3120 08 00 8 mm 41 mm 18.5 mm .001 Kg
3120 10 00 10 mm 51.5 mm 20.5 mm .002 Kg
3120 12 00 12 mm 60 mm 24.5 mm .004 Kg
3120 14 00 14 mm 69.5 mm 25.5 mm .007 Kg

This model exists in nickel-plated brass; please use suffix 85. Example: 3120 06 00 85 Only compatible with Parker Legris fittings. Drawing available upon request.
