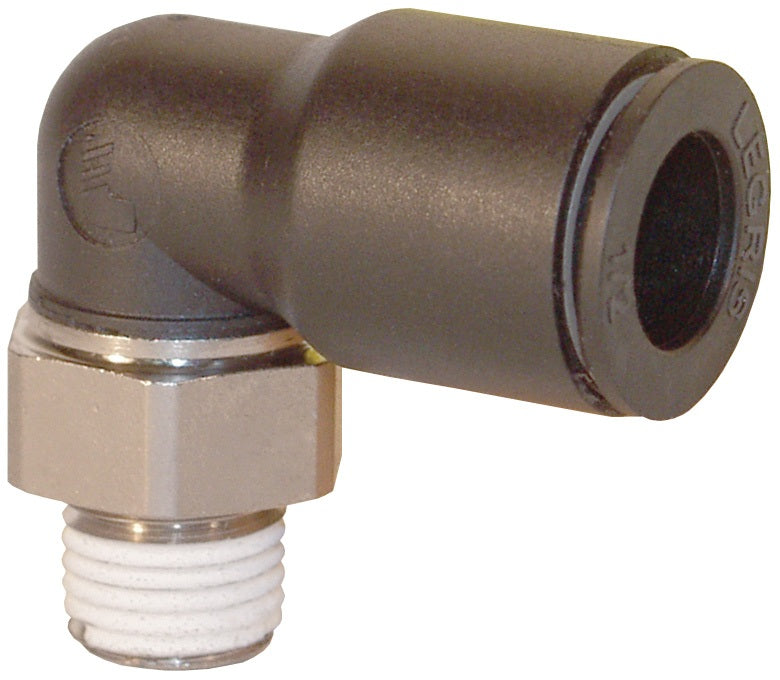

31095620 by Dixon Valve | Legris Push-In Fitting | Male Connector | 90° Elbow | 1/4" Tube OD x 10-32 Male UNF | Nylon / Nickel-Plated Brass

31095620 by Dixon Valve | Legris Push-In Fitting | Male Connector | 90° Elbow | 1/4" Tube OD x 10-32 Male UNF | Nylon / Nickel-Plated Brass

Sale price$14.44

Dixon Valve & Coupling
Legris Push-In Fitting | Male Connector | 90° Elbow | Male UNF x Tube End

Gripping Ring Technology provides a positive seal: sealing and holding is accomplished instantaneously. No tools required.

NOTE: Body is orientable for positioning purposes.
Buy More, Save More!
Quantity Price Each
10–39 $13.57
40–79 $12.27
80+ $10.83
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Legris
Shape:

90 Degree

Ends Configuration:
  • 1/4in Push-to-Connect
  • 10-32 Male UNF
Use:
  • Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.
  • Vacuum capability: vacuum of 28" Hg (99% vacuum).
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
  • Pre-applied thread sealant on all tapered male pipe threads.
Construction:
  • Nickel-plated brass threads.
  • Black body is glass-filled nylon.
  • Nitrile Rubber D seal.
  • Polypropylene release button.
  • Silicone free.
Specifications:
  • Working pressure: 290 PSI at ambient temperature
  • Temperature range: -4°F to 175°F (-20°C to 79°C)
  • Vacuum capability: vacuum of 28" Hg (99% vacuum)
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes:
  • Maximum circuit pressure depends equally on the type and diameter of the tube used.
  • Pressure rating given at ambient temperature 70°F/21°C.
Part Number Tube O.D. Threads
31095320 1/8" 10-32 Male UNF Straight thread (Supplied with Gasket)
31095308 1/8" 1/16" Male NPT
31095311 1/8" 1/8" Male NPT
31095314 1/8" 1/4" Male NPT
31090420 5/32" 10-32 Male UNF Straight thread (Supplied with Gasket)
31090411 5/32" 1/8" Male NPT
31090414 5/32" 1/4" Male NPT
31095620 1/4" 10-32 Male UNF Straight thread (Supplied with Gasket)
31095611 1/4" 1/8" Male NPT
31095614 1/4" 1/4" Male NPT
31095618 1/4" 3/8" Male NPT
31090811 5/16" 1/8" Male NPT
31090814 5/16" 1/4" Male NPT
31090818 5/16" 3/8" Male NPT
31096011 3/8" 1/8" Male NPT
31096014 3/8" 1/4" Male NPT
31096018 3/8" 3/8" Male NPT
31096022 3/8" 1/2" Male NPT
31096214 3/8" 1/4" Male NPT
31096218 1/2" 3/8" Male NPT
31096222 1/2" 1/2" Male NPT
