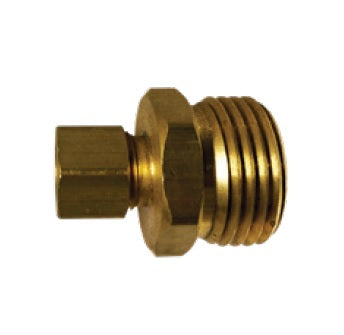

30137 by Midland | Garden Hose Fitting | Non-Swivel Compression x Male | 1/2" Compression x 3/4" Male GHT | Straight | Brass
Midland Industries

30137 by Midland | Garden Hose Fitting | Non-Swivel Compression x Male | 1/2" Compression x 3/4" Male GHT | Straight | Brass

Sale price$13.82

Midland Industries
Brass Fitting - Garden Hose Fitting - Non-Swivel Compression x Male

Washer Included

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Tube Compression
  • 3/4in Male GHT
Material(s):
  • Brass
Temperature and Working Pressure Ranges:
  • From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.)
  • Note: All female connector ends should have a rubber washer inserted prior to usage.
  • Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch.
  • Washers included are #30150B black rubber washers.
Part Number Non-Swivel Compression x Male GHT A Hex 1 Hex 2 Approx. Weight
(Lbs.)
30136 3/8" x 3/4" 1.525" 0.625" 0.62" 0.15
30137 1/2" x 3/4" 1.80" 0.815" 0.685" 0.19
