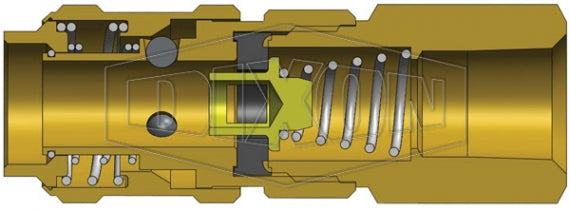

2AF2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | A-Series | 1/4" Female NPTF x 1/4" Body Size | Compact Socket | Nitrile Seal | Brass
2AF2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | A-Series | 1/4" Female NPTF x 1/4" Body Size | Compact Socket | Nitrile Seal | Brass

2AF2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | A-Series | 1/4" Female NPTF x 1/4" Body Size | Compact Socket | Nitrile Seal | Brass

Sale price$28.26

Dixon Valve & Coupling
Pneumatic Coupling: A-Series Compact Coupler (Female Threads)

A-Series couplers are intended for use in compressed air service where the convenience of one hand operation and a compact profile is desired.
Buy More, Save More!
Quantity Price Each
10–39 $26.56
40–79 $24.02
80+ $21.20
Discounts applied in cart/checkout.

Product Data:

Series:
  • A Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female A-Series QD Interchange
  • 1/4in Female NPTF
Compatibility & Interchange:
  • Proprietary Astronautics
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Couplers are constructed of brass with steel valve as standard.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C).
Safety Notes:
  • Pressure rating given at ambient temperature 70°F (21°C).
Additional Information:
A-Series | Compact Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Flow at
100 PSI		 Max. Working
Pressure		 Burst
Pressure
Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:		 Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:
1AF1-B Socket/Female 1/8" 1/8" - 27
Female NPTF		 Brass 1.68"
(42.7mm)		 0.64"
(16.3mm)		 1/2" 7 CFM 500 PSI
(35 bar)		 1,000 PSI
(70 bar)		 15,500 PSI
(1,070 bar)		 18,500 PSI
(1,275 bar)
2AF1-B Socket/Female 1/4" 1/8" - 27
Female NPTF		 Brass 2.41"
(61.2mm)		 0.77"
(19.6mm)		 1/2" - 500 PSI
(35 bar)		 1,000 PSI
(70 bar)		 6,500 PSI
(450 bar)		 8,000 PSI
(550 bar)
2AF2-B Socket/Female 1/4" 1/4" - 18
Female NPTF		 Brass 2.70"
(68.6mm)		 0.77"
(19.6mm)		 11/16" 25 CFM 500 PSI
(35 bar)		 1,000 PSI
(70 bar)		 6,500 PSI
(450 bar)		 8,000 PSI
(550 bar)
A-Series | Compact Plug (Female Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Flow at
100 PSI		 Working Pressure and
Burst Pressure
when Connected to:
A1F1-B Plug/Male 1/8" 1/8" - 27
Female NPTF		 Brass 1.26"
(32.0mm)		 0.58"
(14.7mm)		 1/2" 7 CFM
  • Brass Coupler & Brass Plug:
    Max. Working: 500 PSI (35 bar)
    Burst: 15,500 PSI (1,070 bar)
    A2F1-B Plug/Male 1/4" 1/8" - 27
    Female NPTF    		 Brass 1.34"
    (34.0mm)    		 0.65"
    (16.5mm)    		 9/16" -
    • Brass Coupler & Brass Plug:
      Max. Working: 500 PSI (35 bar)
      Burst: 6,500 PSI (450 bar)
      A2F2 Plug/Male 1/4" 1/4" - 18
      Female NPTF      		 Steel 1.56"
      (39.6mm)      		 0.79"
      (20.1mm)      		 11/16" -
      • Brass Coupler & Steel Plug:
        Max. Working: 1,000 PSI (70 bar)
        Burst: 8,000 PSI (550 bar)
        A2F2-B Plug/Male 1/4" 1/4" - 18
        Female NPTF        		 Brass 1.56"
        (39.6mm)        		 0.79"
        (20.1mm)        		 11/16" 25 CFM
        • Brass Coupler & Brass Plug:
          Max. Working: 500 PSI (35 bar)
          Burst: 6,500 PSI (450 bar)
