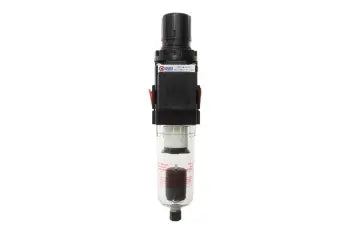

29-2C14-00D by Coilhose | 29 Series Integral Filter/Regulator | Auto Drain | Mini | 1/4" Pipe Size | Aluminum

29-2C14-00D by Coilhose | 29 Series Integral Filter/Regulator | Auto Drain | Mini | 1/4" Pipe Size | Aluminum

Sale price$100.22
Coilhose Pneumatics - Filters, Regulators & Lubricators - 29 Series - Integral Filter/Regulators
Buy More, Save More!
Quantity Price Each
5–19 $94.21
20–59 $85.19
60+ $75.17
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Polycarbonate
  • Aluminum
  • Polypropylene
Special Properties:
  • Mini/Micro Size
Overview:
  • The 29 Series of Filters - Regulators - Lubricators are made from lightweight aluminum bodies, which lend themselves to a wide variety of applications. These filters, regulators and lubricators are also "modular" in design, meaning the individual units can be removed from the line without disturbing the piping or other components. The 29 Series modular connecting system is designed to save space, making it ideal for OEM equipment as well as suitable for tight areas in shop or factory air lines and assembly areas.
Features:
  • Modular design
  • Metal bowl option
  • Low pressure spring option
  • 40 micron element standard
  • 5, 20 micron element option
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.
Proof Pressure: 220 PSI Max Operating Pressure: 145 PSI
Maximum Operating Temp.: Plastic Bowl: 140° F
Metal Bowl: 150° F		 Ambient & Fluid Temp: 32° F to 140° F
Materials: Plastic Bowl: Polycarbonate
Metal Bowl2: Aluminum
Body: Aluminum
Filter Element: Polypropylene		 Bowl Guard3 Steel
Regulating Range4: 5 PSI - 120 PSI Regulator Construction: Relieving Type
Gauge5: Square Nominal Filtration Rating1: Standard: 40 Micron
Optional: 5, 20 Micron

ManualModel Auto DrainModel Pipe Size Max. FlowRate CFM BowlCapacity Features
29-2C18-00 29-2C18-00D 1/8" 20 1.1 oz Mini
29-2C18-00DM - 1/8" 20 1.1 oz Mini, Metal Bowl
29-2C14-00 29-2C14-00D 1/4" 20 1.1 oz Mini
29-2C14-00DM - 1/4" 20 1.1 oz Mini, Metal Bowl
29-3C14-00 29-3C14-00D 1/4" 70 5 oz Compact
29-3C14-00DM - 1/4" 70 5 oz Compact, Metal Bowl
29-3C38-00 29-3C38-00D 3/8" 70 5 oz Compact
29-3C38-00DM - 3/8" 70 5 oz Compact, Metal Bowl
29-4C38-00 29-4C38-00D 3/8" 140 16 oz Standard
29-4C38-00DM - 3/8" 140 16 oz Standard, Metal Bowl
29-4C12-00 29-4C12-00D 1/2" 140 16 oz Standard
29-4C12-00DM - 1/2" 140 16 oz Standard, Metal Bowl
1Standard: 40 micron - Options: 5, 20 micron
2Metal Bowl is available on all Series
3No bowl guard on Series 2C
4Option: Low Pressure Regulating Range 5 - 35 psi
5Option: Round gauge
