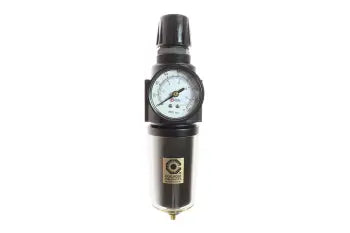

27FC4-GSX by Coilhose | 27 Modular Series Integral Filter/Regulator | Gauge | Metal Bowl with Sight Glass | 5 Micron Element | 1/2" Pipe size

27FC4-GSX by Coilhose | 27 Modular Series Integral Filter/Regulator | Gauge | Metal Bowl with Sight Glass | 5 Micron Element | 1/2" Pipe size

Sale price$197.82
Coilhose Pneumatics - Filters, Regulators & Lubricators - 27 Modular Series - Integral Filter/Regulator
Buy More, Save More!
Quantity Price Each
5–19 $185.95
20–59 $168.15
60+ $148.37
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Aluminum
27 Series Modular Assemblies
27 Series Modular Assemblies

27 Series combination units offer pre-assembled units for fast installations. The integral filter/regulator offers a space-saving design. Duo and trio assemblies utilize the modular clamping system to ease installation.

Integral Filter/Regulator

  • 40 or 5 micron filter element
  • Balanced poppet valve design ensures superior performance
  • 0-250 psi, 0-125 psi, 0-60 psi, 0-25 psi pressure ranges
  • Panel mount, metal bowl and gauge options available
Pipe Size Integral F/R
3/8" 27FC3
1/2" 27FC4
3/4" 27FC6

Options

Filter Regulator Lubricator
F - Filter G - Pressure Gauge (0-160 psi) D - Automatic Drain
D - Automatic Drain H - High Pressure Spring (0-250 psi) M - Metal Bowl Without Sightglass
M - Metal Bowl Without Sightglass J - Extra Low Pressure Spring (0-25 psi) S - Metal Bowl With Sightglass
S - Metal Bowl With Sightglass L - Low Pressure Spring (0-60 psi)
X - 5 Micron Element
Part Number Port Size Gauage Pressure Range Micron Level Drain Bowl Movement Type
27FC3 3/8" No 0-125 PSI 40 Manual Polycarbonate Combination Units
27FC3-HS 3/8" No 0-250 PSI 40 Manual Metal w/ Sightglass Combination Units
27FC3-L 3/8" No 0-60 PSI 40 Manual Polycarbonate Combination Units
27FC3-M 3/8" No 0-125 PSI 40 Manual Metal Combination Units
27FC3-S 3/8" No 0-125 PSI 40 Manual Metal w/ Sightglass Combination Units
27FC3-DGHMX 3/8" Yes 0-250 PSI 5 Automatic Metal Combination Units
27FC3-DGMX 3/8" Yes 0-125 PSI 5 Automatic Metal Combination Units
27FC3-DMX 3/8" No 0-125 PSI 5 Automatic Metal Combination Units
27FC3-GHMX 3/8" Yes 0-250 PSI 5 Manual Metal Combination Units
27FC3-GMX 3/8" Yes 0-125 PSI 5 Manual Metal Combination Units
27FC3-GSX 3/8" Yes 0-125 PSI 5 Manual Metal w/ Sightglass Combination Units
27FC3-GX 3/8" Yes 0-125 PSI 5 Manual Polycarbonate Combination Units
27FC3-HSX 3/8" No 0-250 PSI 5 Manual Metal w/ Sightglass Combination Units
27FC3-SX 3/8" No 0-125 PSI 5 Manual Metal w/ Sightglass Combination Units
27FC3-HM 3/8" No 0-250 PSI 40 Manual Metal Combination Units
27FC3-GS 3/8" No 0-125 PSI 40 Manual Metal w/ Sightglass Combination Units
27FC3-GM 3/8" Yes 0-125 PSI 40 Manual Metal Combination Units
27FC3-D 3/8" No 0-125 PSI 40 Automatic Polycarbonate Combination Units
27FC3-DG 3/8" Yes 0-125 PSI 40 Automatic Polycarbonate Combination Units
27FC3-DGHM 3/8" Yes 0-250 PSI 40 Automatic Metal Combination Units
27FC3-DGLX 3/8" Yes 0-60 PSI - Automatic Polycarbonate Combination Units
27FC3-DGM 3/8" Yes 0-125 PSI 40 Automatic Metal Combination Units
27FC3-DGS 3/8" Yes 0-125 PSI 40 Automatic Metal w/ Sightglass Combination Units
27FC3-DM 3/8" No 0-125 PSI 40 Automatic Metal Combination Units
27FC3-DS 3/8" No 0-125 PSI 40 Automatic Metal w/ Sightglass Combination Units
27FC3-G 3/8" Yes 0-125 PSI 40 Manual Polycarbonate Combination Units
27FC3-GHM 3/8" Yes 0-250 PSI 40 Manual Metal Combination Units
27FC3-GHS 3/8" Yes 0-250 PSI 40 Manual Metal w/ Sightglass Combination Units
27FC3-GL 3/8" Yes 0-60 PSI 40 Manual Polycarbonate Combination Units
27FC3-X 3/8" No 0-125 PSI 5 Manual Polycarbonate Combination Units
