2570-8 Aeroquip by Danfoss | Truck & Engine Air Brake Hose | SAE J1402, DOT/FMVSS 106 Type AII | 0.50" ID
Aeroquip® by Danfoss

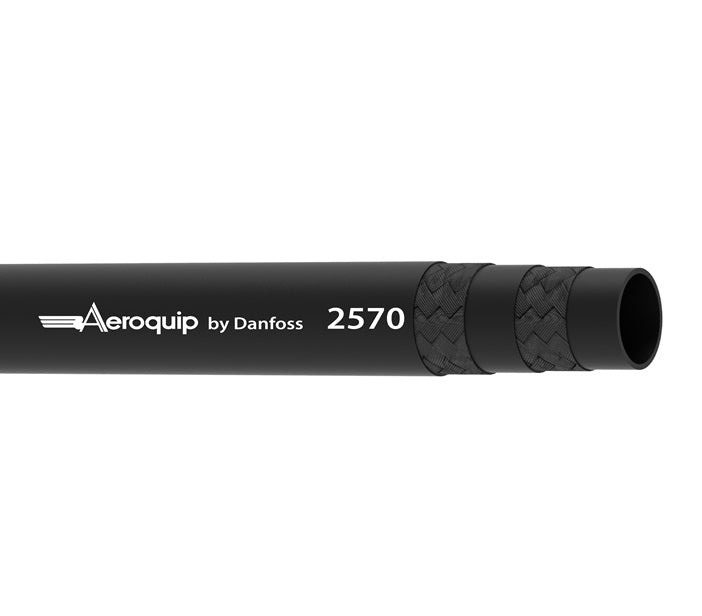

2570 Series | SAE J1402 Truck & Engine Air Brake Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Product Data:
225
| Hose Properties: | |||
|---|---|---|---|
| Application: | Tractor to trailer lines, axle chamber lines and tractor service lines. | SAE Rating: | Meets: SAE J1402, DOT/FMVSS 106 Type AII |
| Other Ratings: | N/A | Tube: | Synthetic Rubber |
| Reinforcement: | Double Textile Braid | Cover: | Synthetic Rubber |
| Temperature Range: | -40°F to +212°F (-40°C to +100°C) |
||
| Part Number | Hose ID | Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| 2570-6 | 9,7 mm | 0.38" | 19,1mm | 0.75" | 16,0 bar | 225 psi | 62,0 bar | 900 Psi | 44,5mm | 1.75" | 0,27 kg/m | 0,18 lbs/ft |
| 2570-8 | 12,7 mm | 0.50" | 22,4mm | 0.88" | 16,0 bar | 225 psi | 62,0 bar | 900 Psi | 50,8mm | 2.00" | 0,34 kg/m | 0,23 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
