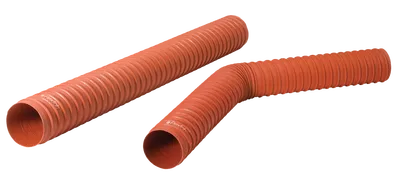

2563-200 by FlexFab | Series 2563 | 2-ply Industrial SIL-FAB2™ Nylon Rod Reinforced Duct | 2.00" ID | 2.40" OD | 12ft Length
Package Quantity: 12 FT
Buy more, save moreDiscounts applied in cart/checkout.
Silicone Ducting
Series 2563 SIL-FAB2™ Nylon Rod Reinforced Ducting
2-ply silicone-coated fiberglass duct hose with nylon rod reinforcement — no metal wire — supplied in 12 ft lengths without cuffs.
1
What is this ducting used for?
- Medium pressure handling of air, dust, fumes and light powders
- Applications in which metal wire may interfere
2
What are the key specifications?
Construction
Double-ply, silicone-coated woven fiberglass hose
Reinforcement
Nylon rod, with helically wound nylon fiber for flexibility
Temperature Range
-65°F (-54°C) to +300°F (+149°C)
Working Pressure
1/3 of the burst pressure
Bend Radius (up to 2.50" ID)
Equal to the inside diameter
Bend Radius (3.00" ID and over)
2 times the inside diameter
3
What are the main product features?
- Vulcanized — for long service life.
- Lightweight and non-kinking
4
Which sizes are available?
| Part Number | Inside Diameter | Outside Diameter | Burst Pressure | Max. Negative Pressure | Max. Leakage (CFM) | Bend Radius | Weight |
|---|---|---|---|---|---|---|---|
| 2563-125 | 1.25" | 1.65" | 27 PSI | -1 PSI | 0.02 | 1.25" | 1.08 lbs |
| 2563-200 | 2.00" | 2.40" | 15 PSI | -1 PSI | 0.02 | 2.00" | 1.73 lbs |
| 2563-250 | 2.50" | 2.90" | 15 PSI | -1 PSI | 0.02 | 2.50" | 2.16 lbs |
| 2563-300 | 3.00" | 3.40" | 12 PSI | -1 PSI | 0.02 | 6.00" | 2.59 lbs |
| 2563-350 | 3.50" | 3.90" | 12 PSI | -1 PSI | 0.02 | 7.00" | 3.02 lbs |
| 2563-400 | 4.00" | 4.40" | 9 PSI | -1 PSI | 0.02 | 8.00" | 3.46 lbs |
⚠ NOTE: Not recommended for handling liquids or abrasive materials, or for charge air applications.
Specifications for reference only. Specific test data available on request.
How is this product sold?
Sold in 12 ft lengths, without cuffs.
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
5
Tubing Construction:
Cover Construction:
