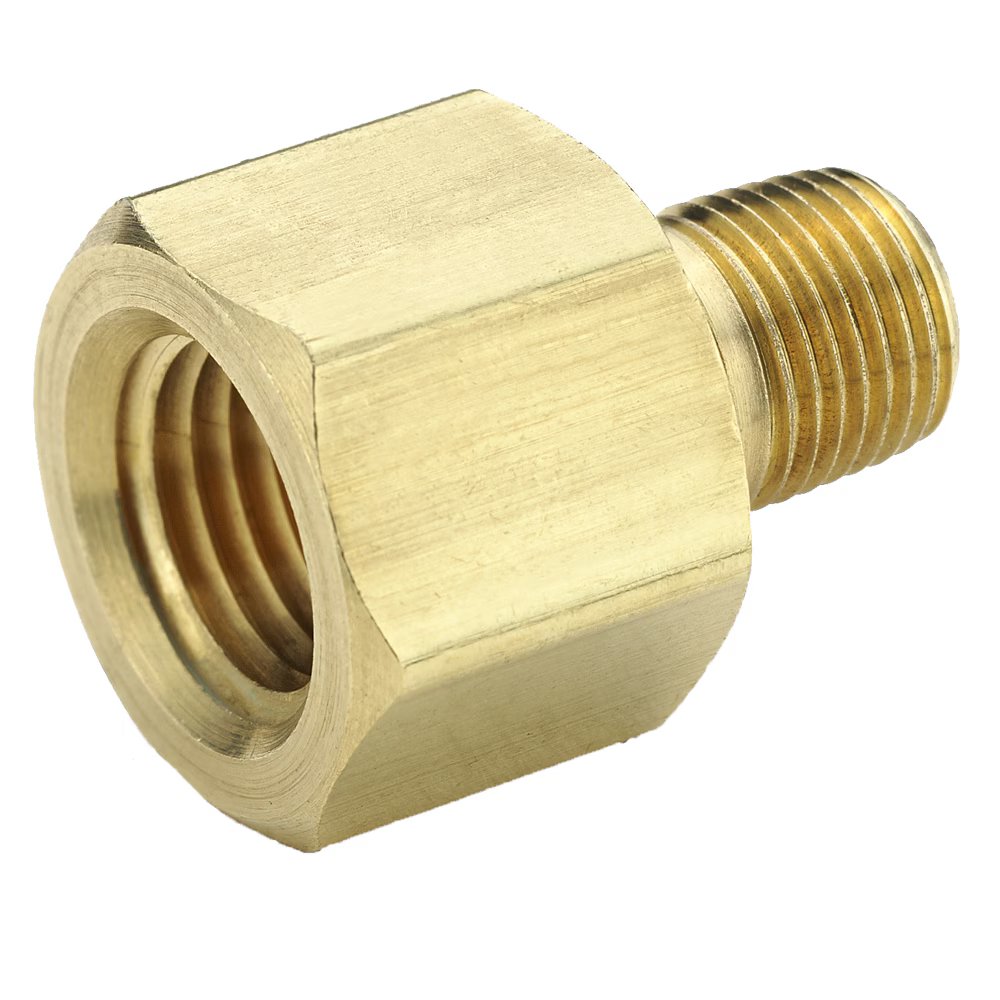

222P-8-6 by Parker | Legris Reducer | 1/2" Male NPTF Thread x 3/8" Female NPTF Thread | 1-1/16" Hex | 1.47" Length | Straight | Brass | Pack of 10
by Parker Hannifin
Brass Adapters:222P Reducer, Female/Male NPTF Thread
Package Quantity: 10 Units
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||
|---|---|---|---|---|---|---|
 |
||||||
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | 1 Pipe Thread | 2 Pipe Thread | Hex (C) | L | Flow Diameter (D) | |
| 222P-2-2 | 1/8" | 1/8" | 9/16" | .88" | .220" | |
| 222P-4-2 | 1/4" | 1/8" | 3/4" | 1.06" | .220" | |
| 222P-4-4 | 1/4" | 1/4" | 3/4" | 1.25" | .314" | |
| 222P-6-2 | 3/8" | 1/8" | 7/8" | 1.10" | .220" | |
| 222P-6-4 | 3/8" | 1/4" | 7/8" | 1.25" | .314" | |
| 222P-6-6 | 3/8" | 3/8" | 7/8" | 1.25" | .440" | |
| 222P-8-4 | 1/2" | 1/4" | 1" | 1.47" | .314" | |
| 222P-8-6 | 1/2" | 3/8" | 1-1/16" | 1.47" | .440" | |
| 222P-8-8 | 1/2" | 1/2" | 1-1/16" | 1.66" | .564" | |
| 222P-12-6 | 3/4" | 3/8" | 1-3/8" | 1.50" | .440" | |
| 222P-12-8 | 3/4" | 1/2" | 1-3/8" | 1.69" | .564" | |
| 222P-12-12 | 3/4" | 3/4" | 1-3/8" | 1.69" | .752" | |
