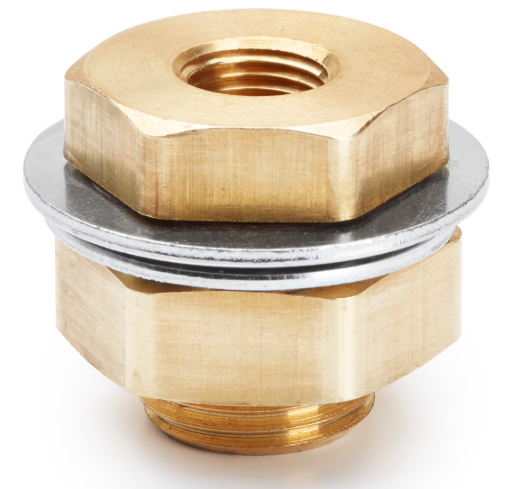

207ACBH-4-S by Parker | Pipe Fittings | Sealed Bulkhead | 1/4" Female Pipe Thread x 3/4" Male Pipe Thread | 1" Hex (B) | 1-1/8" Hex (C) | 1.50" Length | Straight | Brass
Parker Fluid Connections Division

207ACBH-4-S by Parker | Pipe Fittings | Sealed Bulkhead | 1/4" Female Pipe Thread x 3/4" Male Pipe Thread | 1" Hex (B) | 1-1/8" Hex (C) | 1.50" Length | Straight | Brass

Sale price$25.99

by Parker Hannifin
Pipe Fittings:Sealed Bulkhead 207ACBH-S

Product Data:

Series:
  • 207ACBH-S Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female NPSM
  • 3/4in Male NPSM
Product Features:
  • All Brass Construction
  • Meets functional requirements of SAE J530 and SAE J531
  • Threads made to dryseal standards
  • Both forgings and extrusions available
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
  • Factory/process automation
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
Temperature Range: -65° to +250° F (-53.9° to +121.1° C)
Pressure Range: Up to 1000 PSI (68.9 bar)
Part Number Female Pipe Thread Straight Thread Max Bulkhead (P) Hex (B) Hex (C) J L Bulkhead Hole Diameter (H) Flow Diameter (D)
207ACBH-2-S 1/8" 5/8"-18 .84" 7/8" 15/16" 1.19" 1.50" .656" .339"
207ACBHS-2-S 1/8" 5/8"-18 .30" 7/8" 15/16" 1.19" .96" .656" .339"
207ACBH-4-S 1/4" 3/4"-16 .75" 1" 1-1/8" 1.31" 1.50" .781" .441"
207ACBHS-4-S 1/4" 3/4"-16 .20" 1" 1" 1.31" .94 .781" .441"
207ACBH-6-S 3/8" 1"-14 .56" 1-1/8" 1-1/1" 1.75" 1.31" 1.031" .571"
