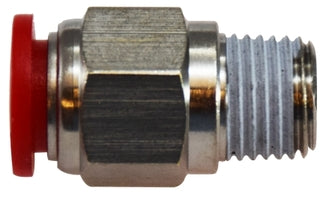

20633 by Midland | Metric Push-In Fitting | 6mm Tube OD x 1/4" Male BSPT Thread | Adapter | Nickel Plated Brass
Midland Industries
Brass Fitting - Nickel Plated Brass Push-in Fitting - Male Adapter
The latest generation of composite material is used in the body construction in addition to nickel-plated brass on threaded components and stainless steel on the tube gripper.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $8.59 |
| 40–79 | $7.77 |
| 80+ | $6.86 |
Discounts applied in cart/checkout.
Product Data:
Shape:
["Straight"]
Ends Configuration:
Material(s):
Seal Material(s):
SPECIFICATIONS
| Pressure Operating Range: | 0 to 220 PSI (15 bar) | Vacuum Operating Range: | 0 to 29hg (-.99 bar) |
|---|---|---|---|
| Temperature: | -50 F to + 1750 F (-200 C to + 800 C) | Media: | Compressed air, Non-toxic fluids (water) |
| Materials of Construcion | ||
|---|---|---|
| 1 | Body | Composite |
| 2 | Body | Nickel Plated Brass |
| 3 | Tube Release | Acetal Resin |
| 4 | Retainer | Nickel Plated Brass |
| 5 | Gripper Ring | Stainless Steel |
| 6 | Spacer | Composite |
| 7 | Thread Packing | NBR 70 |
| 8 | O-Ring | NBR 70 |
| 9 | Thread Seal | NBR 70 |
| Crossover Series: |
|---|
| 3175 |
| Part Number | Tube O.D. (mm) |
Male BSPT |
|---|---|---|
| 20630 (20-630) |
4mm | 1/8" |
| 20631 (20-631) |
4mm | 1/4" |
| 20632 (20-632) |
6mm | 1/8" |
| 20633 (20-633) |
6mm | 1/4" |
| 20634 (20-634) |
8mm | 1/4" |
| 20635 (20-635) |
8mm | 3/8" |
| 20636 (20-636) |
10mm | 1/4" |
| 20637 (20-637) |
10mm | 3/8" |
| 20801 (20-801) |
12mm | 1/4" |
| 20638 (20-638) |
12mm | 3/8" |
Dimension Data can change without notice.
