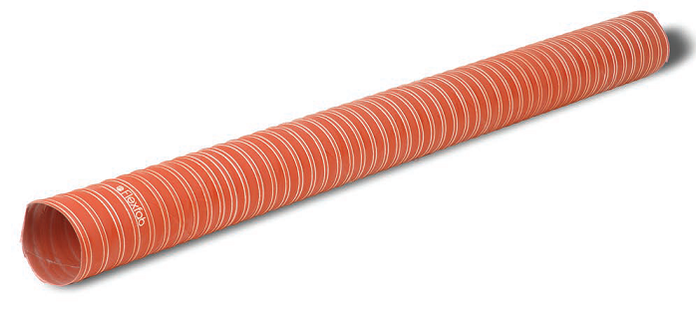

2005-600 by FlexFab | Series 2005 | 2-ply Industrial SIL-FAB2™ Wire Reinforced Duct | 6.00" ID | 6.14" OD | 12ft Length
Package Quantity: 12 FT
Buy more, save moreDiscounts applied in cart/checkout.
Silicone Ducting
Series 2005 SIL-FAB2™ Wire Reinforced Ducting
Double-ply silicone-coated woven fiberglass duct hose with a helically wound spring steel wire, supplied in 12 ft lengths without cuffs.
1
What is this ducting used for?
- Medium pressure handling of air, dust, fumes and light powders
2
What are the key specifications?
Construction
Double-ply, silicone-coated woven fiberglass hose
Reinforcement
Chemically treated, helically wound spring steel wire for flexibility
Cord
Double, continuous filament, silicone-treated fiberglass cord
Temperature Range
-65°F (-54°C) to +500°F (+260°C)
Working Pressure
1/3 of the burst pressure
Bend Radius
Equal to the inside diameter
3
What are the main product features?
- Vulcanized — for long service life.
- Lightweight and non-kinking
4
Which sizes are available?
| Part Number | Inside Diameter | Outside Diameter | Burst Pressure | Max. Leakage (CFM) | Max. Negative Pressure | Wall Thickness (in.) | Weight |
|---|---|---|---|---|---|---|---|
| 2005-100 | 1.00" | 1.14" | 180 PSI | 0.015 | 15 PSI | 0.07 | 2.00 oz/ft |
| 2005-125 | 1.25" | 1.39" | 180 PSI | 0.015 | 15 PSI | 0.07 | 2.50 oz/ft |
| 2005-150 | 1.50" | 1.64" | 165 PSI | 0.015 | 13 PSI | 0.07 | 3.00 oz/ft |
| 2005-175 | 1.75" | 1.89" | 165 PSI | 0.02 | 13 PSI | 0.07 | 3.50 oz/ft |
| 2005-200 | 2.00" | 2.14" | 150 PSI | 0.02 | 10 PSI | 0.07 | 4.00 oz/ft |
| 2005-225 | 2.25" | 2.39" | 150 PSI | 0.02 | 10 PSI | 0.07 | 4.50 oz/ft |
| 2005-250 | 2.50" | 2.64" | 135 PSI | 0.025 | 8 PSI | 0.07 | 5.00 oz/ft |
| 2005-275 | 2.75" | 2.89" | 135 PSI | 0.025 | 8 PSI | 0.07 | 6.00 oz/ft |
| 2005-300 | 3.00" | 3.14" | 135 PSI | 0.03 | 7 PSI | 0.07 | 6.20 oz/ft |
| 2005-325 | 3.25" | 3.39" | 135 PSI | 0.03 | 6 PSI | 0.07 | 6.70 oz/ft |
| 2005-350 | 3.50" | 3.64" | 120 PSI | 0.035 | 6 PSI | 0.07 | 7.20 oz/ft |
| 2005-375 | 3.75" | 3.89" | 120 PSI | 0.035 | 5 PSI | 0.07 | 7.80 oz/ft |
| 2005-400 | 4.00" | 4.14" | 120 PSI | 0.04 | 5 PSI | 0.08 | 8.40 oz/ft |
| 2005-450 | 4.50" | 4.64" | 105 PSI | 0.05 | 4 PSI | 0.08 | 9.60 oz/ft |
| 2005-500 | 5.00" | 5.14" | 105 PSI | 0.06 | 4 PSI | 0.08 | 10.70 oz/ft |
| 2005-550 | 5.50" | 5.64" | 90 PSI | 0.08 | 3 PSI | 0.08 | 11.80 oz/ft |
| 2005-600 | 6.00" | 6.14" | 90 PSI | 0.1 | 3 PSI | 0.08 | 13.00 oz/ft |
| 2005-800 | 8.00" | 8.14" | 45 PSI | 0.15 | 3 PSI | 0.08 | 17.80 oz/ft |
| 2005-1000 | 10.00" | 10.14" | 24 PSI | 0.2 | 2 PSI | 0.08 | 22.60 oz/ft |
⚠ NOTE: Not recommended for handling liquids or abrasive materials, or for charge air applications.
Specifications for reference only. Specific test data available on request.
How is this product sold?
Sold in 12 ft lengths, without cuffs.
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
8
Tubing Construction:
Cover Construction:
