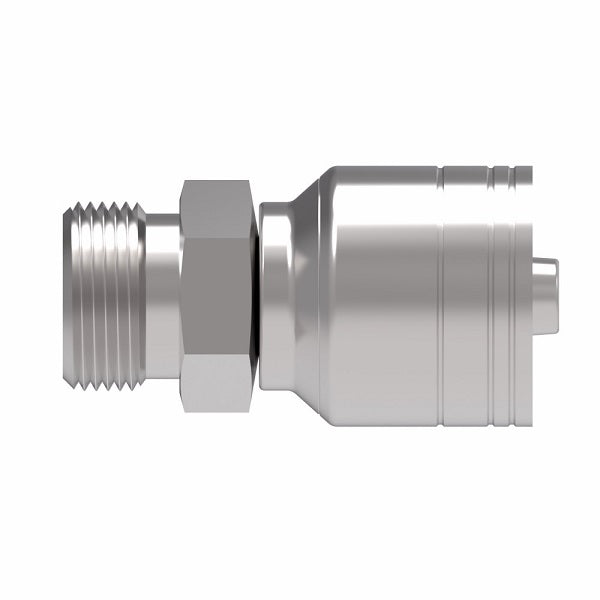

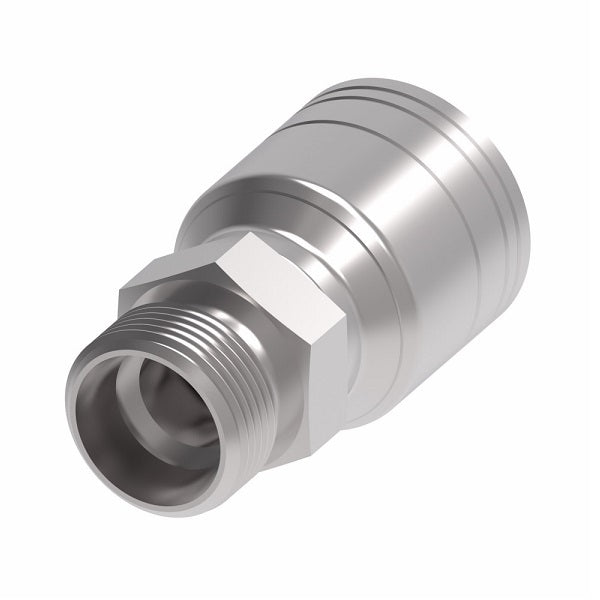

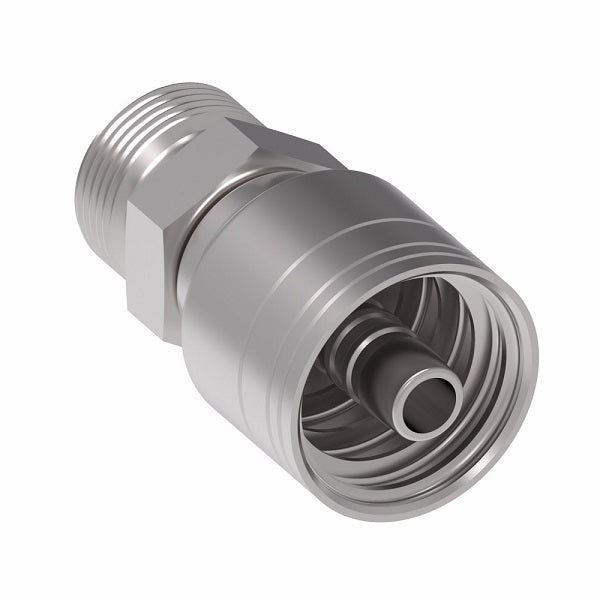

1A10EK6 Aeroquip by Danfoss | 1 & 2 Wire TTC 24° Male, Heavy Duty (EK) Crimp Fitting | S14 Male DKO/DIN x -06 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC 24° Male DKO/DIN, Heavy Duty Crimp Fitting (EK) - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $32.02 |
| 40–79 | $28.95 |
| 80+ | $25.55 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread T |
Tube OD | Hose Size | A | D | EØ | Hex 2 |
|
| 1A5EK4 | M16 x 1.5 | 8 | -04 | 1.87" | 0.95" | 0.16" | 0.67" | |
| 1A6EK4 | M18 x 1.5 | 10 | -04 | 1.60" | 0.93" | 0.16" | 0.75" | |
| 1A6EK6 | M18 x 1.5 | 10 | -06 | 1.79" | 0.95" | 0.26" | 0.75" | |
| 1A8EK6 | M20 x 1.5 | 12 | -06 | 1.98" | 0.98" | 0.26" | 0.87" | |
| 1A10EK6 | M22 x 1.5 | 14 | -06 | 2.07" | 1.07" | 0.26" | 0.94" | |
| 1A12EK8 | M24 x 1.5 | 16 | -08 | 2.28" | 1.11" | 0.38" | 1.06" | |
| 1A16EK10 | M30 x 2 | 20 | -10 | 2.44" | 1.29" | 0.50" | 1.26" | |
| 1A16EK12 | M30 x 2 | 20 | -12 | 2.27" | 1.21" | 0.61" | 1.26" | |
| 1A20EK12 | M36 x 2 | 25 | -12 | 2.58" | 1.39" | 0.61" | 1.61" | |
| 1A25EK16 | M42 x 2 | 30 | -16 | 2.85" | 1.49" | 0.81" | 1.81" | |
