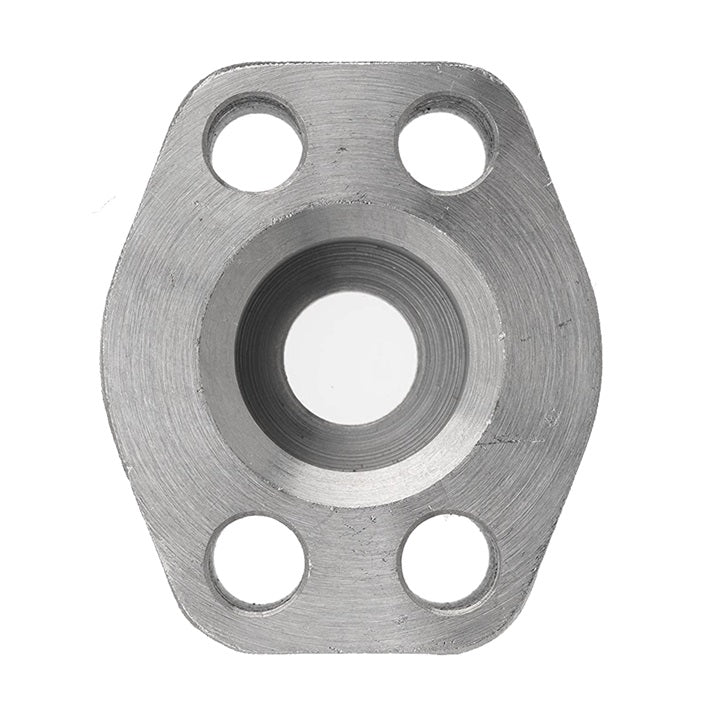

Flange Fittings: 1935-61 - Flat Socket Block Pipe x O-Ring Face Flange (Code 61)
Product Data:
Ends Configuration:
Material(s):
 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Pipe Size | Flange Size | A | B | C | D | E | F | G | H | J Min. | J Max. | K1 Drill | K2 Thread |
| 1935-61-08-08 | Steel | 1/2" | 1/2" | 1.813" | 2.125" | 0.688" | 1.500" | 0.750" | 0.560" | 0.855" | 0.50" | 1.000" | 1.005" | 0.344" | 5/16-18" |
| 1935-61-12-12 | Steel | 3/4" | 3/4" | 2.063" | 2.563" | 0.875" | 1.875" | 0.75" | 0.560" | 1.062" | 0.75" | 1.250" | 1.255" | 0.406" | 3/8-18" |
| 1935-61-16-16 | Steel | 1" | 1" | 2.313" | 2.750" | 1.031" | 2.062" | 0.88" | 0.630" | 1.326" | 1.00" | 1.560" | 1.565" | 0.406" | 3/8-16 |
| 1935-61-20-20 | Steel | 1-1/4" | 1-1/4" | 2.875" | 3.125" | 1.188" | 2.312" | 0.940" | 0.690" | 1.672" | 1.25" | 1.750" | 1.755" | 0.469" | 7/16-14" |
| 1935-61-24-24 | Steel | 1-1/2" | 1-1/2" | 3.250" | 3.688" | 1.406" | 2.750" | 1.190" | 0.750" | 1.922" | 1.50" | 2.115" | 2.125" | 0.531" | 1/2-13" |
| 1935-61-32-32 | Steel | 2" | 2" | 3.813" | 4.000" | 1.688" | 3.062" | 1.380" | 0.875" | 2.406" | 2.00" | 2.490" | 2.500" | 0.531" | 1/2-13" |
| 1935-61-40-40 | Steel | 2-1/2" | 2-1/2" | 4.281" | 4.500" | 2.000" | 3.500" | 1.750" | 1.000" | 2.906" | 2.50" | 2.995" | 3.005" | 0.531" | 1/2-13" |
| 1935-61-48-48 | Steel | 3" | 3" | 5.156" | 5.313" | 2.438" | 4.188" | 2.120" | 1.250" | 3.547" | 3.00" | 3.615" | 3.625" | 0.656" | 5/8-11" |
