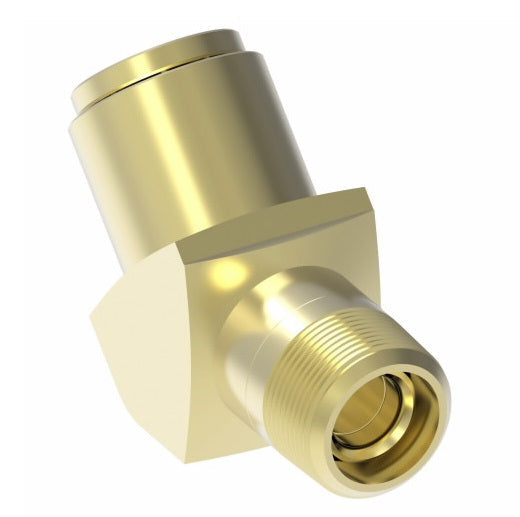

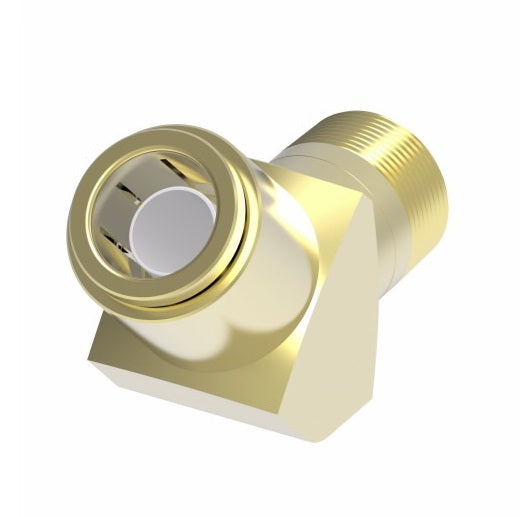

1880X12 by Danfoss | Quick Connect Air Brake Adapter | Male Connector 45° Elbow | 3/4" Tube OD x 1/2" Male NPTF | Brass
Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Male Connector
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $31.85 |
| 40–79 | $28.80 |
| 80+ | $25.41 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Material(s):
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Conformance: | |||
|
|||
| Assembly & Disassembly: | |||
 |
|||||
|---|---|---|---|---|---|
| Brass Part Number |
Tube O.D. | Male Pipe Thread | D1 | M | N |
| 1880X4 | 1/4" | 1/8" | 0.19" | 0.95" | 0.59" |
| 1880X4X4 | 1/4" | 1/4" | 0.31" | 0.95" | 0.59" |
| 1880X6X2 | 3/8" | 1/8" | 0.25" | 1.05" | 0.48" |
| 1880X6 | 3/8" | 1/4" | 0.31" | 1.05" | 0.69" |
| 1880X6X6 | 3/8" | 3/8" | 0.41" | 1.10" | 0.63" |
| 1880X6X8 | 3/8" | 1/2" | 0.53" | 1.20" | 0.70" |
| 1880X8X4 | 1/2" | 1/4" | 0.31" | 1.07" | 0.88" |
| 1880X8 | 1/2" | 3/8" | 0.41" | 0.99" | 0.72" |
| 1880X8X8 | 1/2" | 1/2" | 0.53" | 0.99" | 0.82" |
| 1880X10X6 | 5/8" | 3/8" | 0.41" | 1.13" | 0.88" |
| 1880X10 | 5/8" | 1/2" | 0.53" | 1.26" | 0.92" |
| 1880X12 | 3/4" | 1/2" | 0.53" | 1.16" | 0.98" |
