HD-1822-17-18 by Hannay | 1800 Series | Hydraulic Powered Rewind Reel

HD-1822-17-18 by Hannay | 1800 Series | Hydraulic Powered Rewind Reel

Sale price$1,341.94
Quantity Price Each
8–14 $1,234.58
15+ $1,140.65
Discounts applied at checkout.

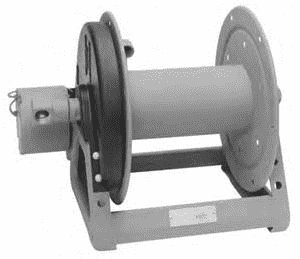

1800 Hydraulic Powered Rewind Reels To handle single 5/8" or 3/4" I.D. hose.

Product Data:

Series:
  • 1800 Series
Applications:
  • Air Compressors
  • Washdown
Features:
  • Lightweight compact reels designed for long lengths of hose in manual power rewind.
  • Direct crank rewind is permanently attached.
  • Chain and sprocket drive powered by a Hydraulic motor
  • Standard inlet 90 deg. ball bearing swivel joint 1" female NPT threads.
  • Standard outlet 3/4" female NPT threads.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -40 deg. F to +250 deg. F (-40 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 5/8" 3/4"
O.D. (in) 1" 1-9/32" A B E Crank E Power F Crank F Power X
HD-1816-17-18 75' length 50' length 43 lbs. 13" 7" 16.5" 19" 23.38" 18.5" 11.5"
HD-1822-17-18 150' length 100' length 45 lbs. 19" 14" 16.5" 19" 29.38" 24.5" 17.5"
HD-1826-17-18 200' length 125' length 47 lbs. 23" 18" 16.5" 19" 33.38" 28.5" 21.5"
HD-1830-17-18 275' length 150' length 48 lbs. 27" 22" 16.5" 19" 37.38" 32.5" 25.5"
HD-1836-17-18 350' length 200' length 51 lbs. 33" 28" 16.5" 19" 43.38" 38.5" 31.5"

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
