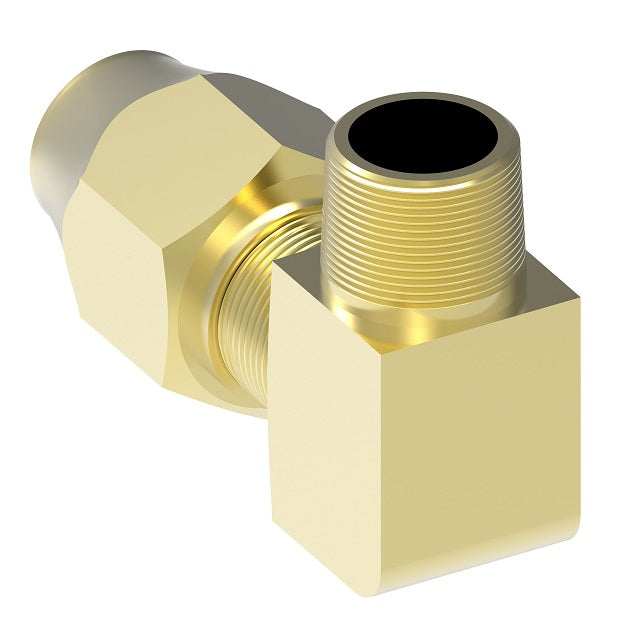

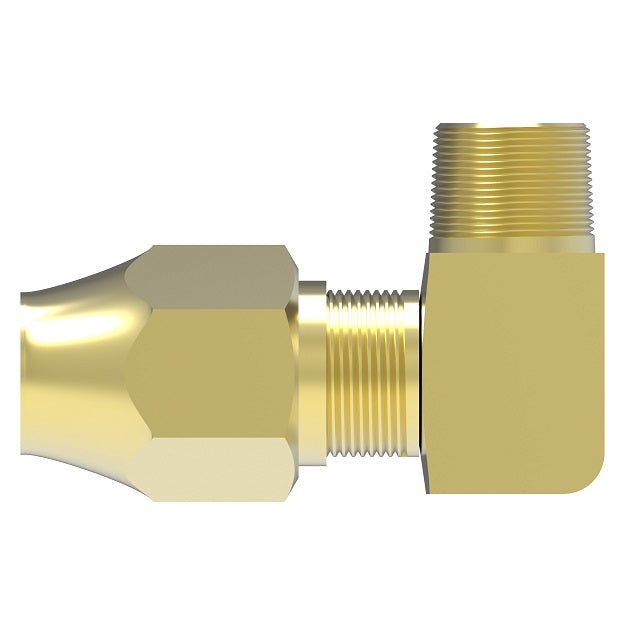

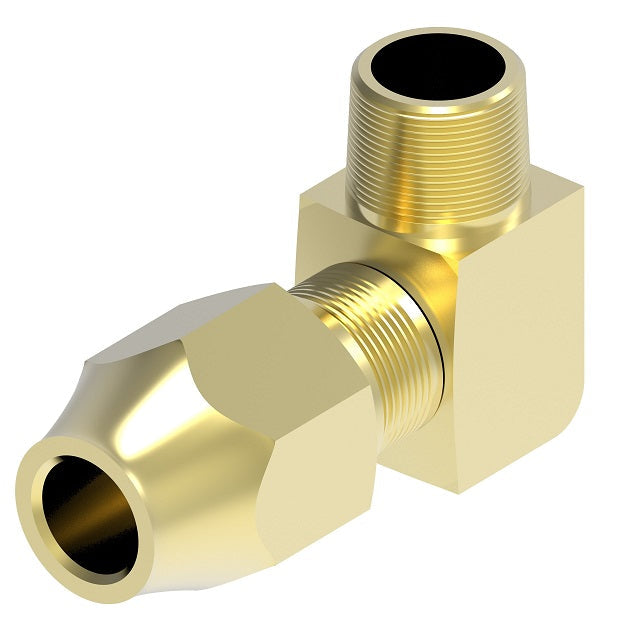

169X4 by Danfoss | Compression Fitting | Male Connector 90° Elbow | Long Nut | 1/4" Tube OD x 1/8" Male NPTF | Brass
169X4 by Danfoss | Compression Fitting | Male Connector 90° Elbow | Long Nut | 1/4" Tube OD x 1/8" Male NPTF | Brass
169X4 by Danfoss | Compression Fitting | Male Connector 90° Elbow | Long Nut | 1/4" Tube OD x 1/8" Male NPTF | Brass
Danfoss/Eaton

169X4 by Danfoss | Compression Fitting | Male Connector 90° Elbow | Long Nut | 1/4" Tube OD x 1/8" Male NPTF | Brass

Sale price$5.97

Aeroquip® by Danfoss
Compression Fitting - Male Connector (with Long Nut)
Compression End x Male NPTF
90° Elbow

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/4in Tube Compression
  • 1/8in Male NPTF
Material(s):
  • Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Ref. SAE No. 060202BA
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number		 Tube O.D. Male Pipe Thread
169X4 1/4" 1/8"
169X4X4 1/4" 1/4"
169X6 3/8" 1/4"
169X6X6 3/8" 3/8"
