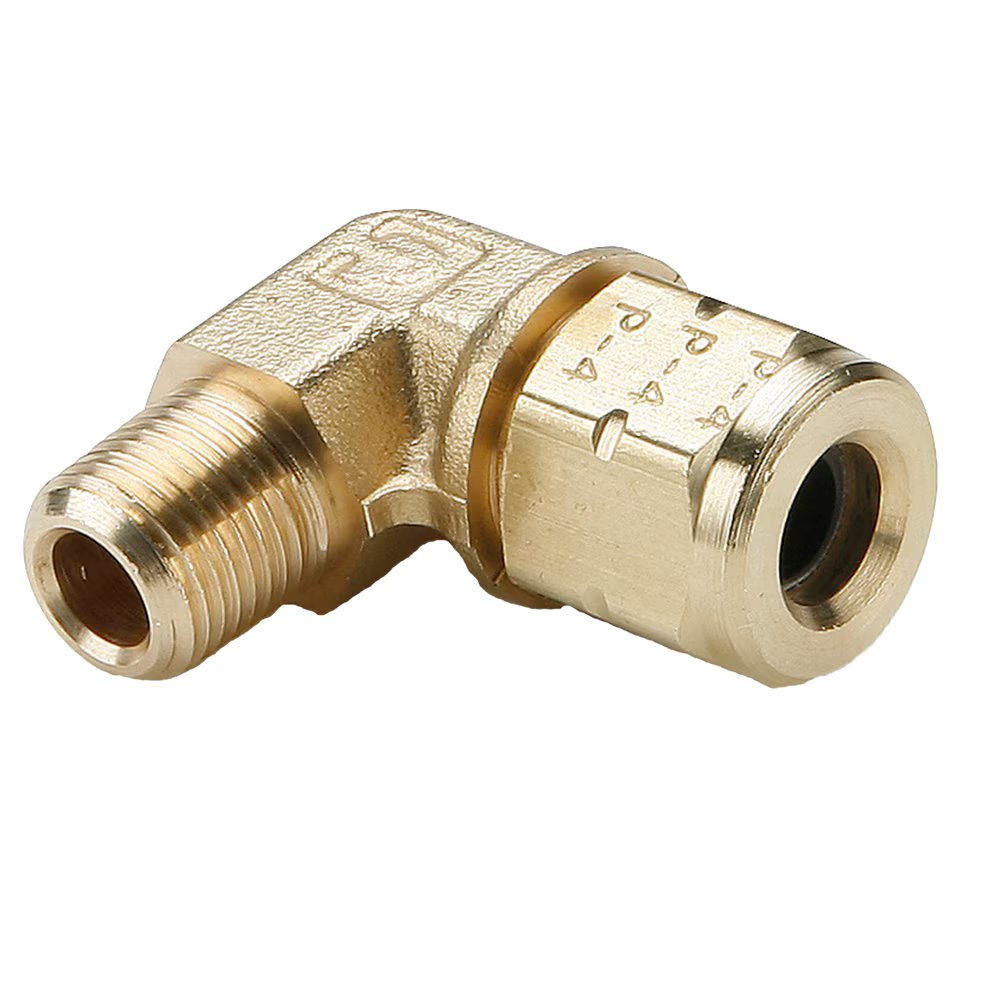

169VL-5-4 by Parker | Vibra-Lok Fittings | 5/16" Tube Size x 1/4" Male Pipe Thread | 90° Elbow | Brass | Pack of 50
by Parker Hannifin
Vibra-Lok Fittings:Male Elbow 169VL
Package Quantity: 50 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $802.05 |
| 15–29 | $725.25 |
| 30+ | $639.93 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Dependent on condition and tube size, refer to pressure chart |
 |
|
| Temperature Range: | -15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve -30° to +275° F (-34.4° to +135° C) with Buna N Sleeve |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | Pipe Thread | L | M | N | Flow Diameter (D) |
| 169VL-3-2 | 3/16" | 1/8" | .98" | .69" | .75" | .156" |
| 169VL-4-2 | 1/4" | 1/8" | 1.00" | .69" | .78" | .188" |
| 169VL-4-4 | 1/4" | 1/4" | 1.16" | .84" | 1.00" | .188" |
| 169VL-5-4 | 5/16" | 1/4" | 1.16" | .81" | 1.00" | .252" |
| 169VL-6-2 | 3/8" | 1/8" | 1.19" | .84" | .91" | .235" |
| 169VL-6-4 | 3/8" | 1/4" | 1.19" | .84" | 1.06" | .312" |
| 169VL-6-6 | 3/8" | 3/8" | 1.29" | .94" | 1.13" | .312" |
| 169VL-8-6 | 1/2" | 3/8" | 1.48" | 1.00" | 1.06" | .406" |
| 169VL-8-8 | 1/2" | 1/2" | 1.54" | 1.06" | 1.44" | .406" |
| 169VL-10-8 | 5/8" | 1/2" | 1.92" | 1.28" | 1.47" | .565" |
