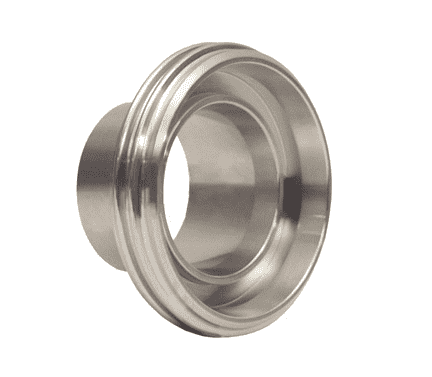

15A-R300DIN Dixon Valve Bradford Sanitary European Fitting - 316 Stainless Steel DIN Welding Male - 3" Tube OD - 80 DN Size
Dixon's Bradford™ Sanitary European Fittings - DIN Welding Males - 316 Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $56.33 |
| 40–79 | $50.94 |
| 80+ | $44.95 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
| Features: | |||
|---|---|---|---|
|
| Part Number | Tube OD | DN Size | Dimensions  |
Weight (Lbs.) |
|
|---|---|---|---|---|---|
| A | B | ||||
| 15A-R100DIN | 1" | 25 | 1.14" | 2.04" | 0.1100 |
| 15A-R150DIN | 1-1/2" | 40 | 1.30" | 2.55" | 0.1500 |
| 15A-R200DIN | 2" | 50 | 1.38" | 3.04" | 0.2200 |
| 15A-R250DIN | 2-1/2" | 65 | 1.57" | 3.74" | 0.3500 |
| 15A-R300DIN | 3" | 80 | 1.77" | 4.31" | 0.7500 |
| 15A-R400DIN | 4" | 100 | 2.13" | 5.12" | 0.8600 |
