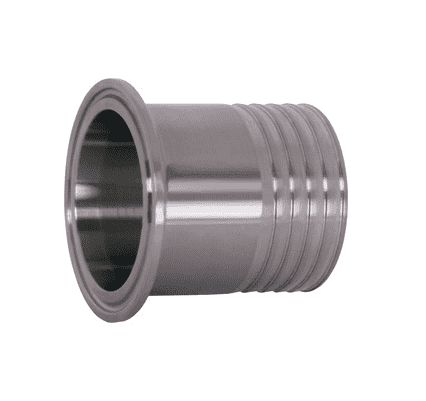

14MPHR-R15075 Dixon Valve 316L Stainless Steel Sanitary Rubber Hose Adapter - 1-1/2" Tube OD - 3/4" Hose Size
Dixon Sanitary Fittings Sanitary Clamp Adapters for Rubber Hose - 316L Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $39.62 |
| 40–79 | $35.83 |
| 80+ | $31.61 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Part Number | Tube OD | Hose Size | Dimensions
|
Weight (Lbs.) | |
|---|---|---|---|---|---|
| A | B | ||||
| 14MPHR-R50125 | 1/2" | 1/8" | - | - | 0.0540 |
| 14MPHR-R50188 | 1/2" | 0.188" | - | - | - |
| 14MPHR-R50375 | 1/2" | 3/8" | - | - | 0.0600 |
| 14MPHR-R5025 | 1/2" | 1/4" | 1.500 | .250 | 0.0500 |
| 14MPHR-R50 | 1/2" | 1/2" | 1.500 | .500 | 0.0600 |
| 14MPHR-R5075 | 1/2" | 3/4" | 1.500 | .750 | 0.1350 |
| 14MPHR-R75125 | 3/4" | 1/8" | - | - | 0.8200 |
| 14MPHR-R75375 | 3/4" | 3/8" | 1.500 | .375 | 0.0700 |
| 14MPHR-R7550 | 3/4" | 1/2" | 1.500 | .500 | 0.0600 |
| 14MPHR-R75625 | 3/4" | 5/8" | - | - | - |
| 14MPHR-R75 | 3/4" | 3/4" | 1.500 | .750 | 0.0700 |
| 14MPHR-R10025 | 1" | 1/4" | - | - | 0.8900 |
| 14MPHR-R100375 | 1" | 3/8" | 1.500 | .375 | 0.2300 |
| 14MPHR-R10050 | 1" | 1/2" | 1.500 | .500 | 0.2000 |
| 14MPHR-R10075 | 1" | 3/4" | 1.688 | .750 | 0.2500 |
| 14MPHR-R100 | 1" | 1" | 1.688 | 1.000 | 0.2500 |
| 14MPHR-R150125 | 1-1/2" | 1/8" | - | - | 0.2400 |
| 14MPHR-R15025 | 1-1/2" | 1/4" | - | - | 0.1850 |
| 14MPHR-R150375 | 1-1/2" | 3/8" | - | - | 0.1950 |
| 14MPHR-R15050 | 1-1/2" | 1/2" | 1.500 | .500 | 0.1900 |
| 14MPHR-R15075 | 1-1/2" | 3/4" | 1.500 | .750 | 0.1900 |
| 14MPHR-R150100 | 1-1/2" | 1" | 1.687 | 1.000 | 0.2300 |
| 14MPHR-R150 | 1-1/2" | 1-1/2" | 1.689 | 1.500 | 0.2150 |
| 14MPHR-R150-125 | 1-1/2" | 1-1/4" | - | - | 0.2500 |
| 14MPHR-R20075 | 2" | 3/4" | - | - | 0.3620 |
| 14MPHR-R200150 | 2" | 1-1/2" | 2.312 | 1.500 | 0.4350 |
| 14MPHR-R200 | 2" | 2" | 2.312 | 2.000 | 0.4350 |
| 14MPHR-R250 | 2-1/2" | 2-1/2" | 2.344 | 2.500 | 1.2000 |
| 14MPHR-R300 | 3" | 3" | 3.094 | 3.000 | 0.7150 |
| 14MPHR-R400 | 4" | 4" | 3.406 | 4.000 | 1.2550 |
| 14MPHR-R600 | 6" | 6" | 3.406 | 6.000 | 4.2000 |
| 14MPHR-R800 | 8" | 8" | - | - | 5.2400 |
