1469X6X2Z by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector 90° Elbow (with Sealant) | 3/8" Tube OD x 1/8" Male Pipe | Brass
Aeroquip® by Danfoss

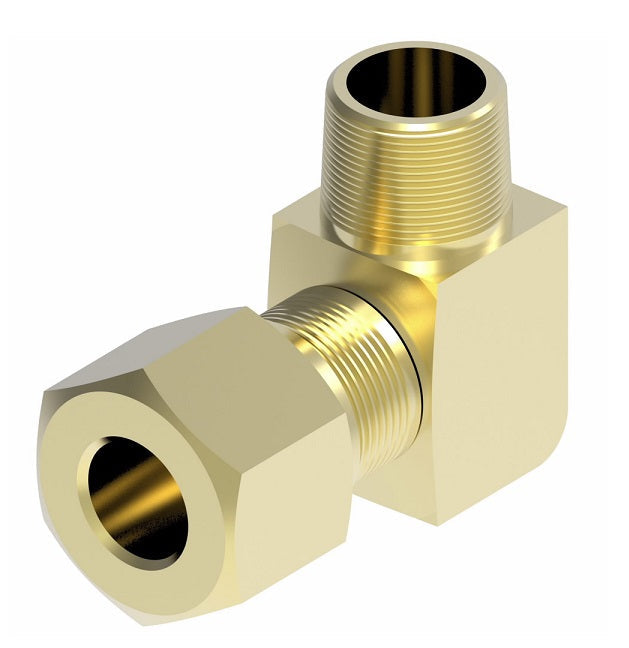

Air Brake Adapter for Nylon Tubing - Male Connector
Product Data:
Shape:
90 Degree
Material(s):
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Conformance: | |||
|
| Tube O.D. | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" |
| Thread Size | 7/16-24 | 17/32-24 | 11/16-20 | 13/16-18 | 1-18 |
 |
||||||
|---|---|---|---|---|---|---|
| Brass Part Number |
Brass with Sealant Part Number |
Tube O.D. | Male Pipe Thread |
D1 | M | N |
| 1469X4 | 1469X4Z | 1/4" | 1/8" | 0.188" | 0.63" | 0.67" |
| 1469X4X4 | - | 1/4" | 1/4" | 0.312" | 0.69" | 0.88" |
| 1469X4X6 | - | 1/4" | 3/8" | 0.406" | 0.74" | 0.87" |
| 1469X6X2 | 1469X6X2Z | 3/8" | 1/8" | 0.188" | 0.73" | 0.75" |
| 1469X6 | 1469X6Z | 3/8" | 1/4" | 0.312" | 0.80" | 0.93" |
| 1469X6X6 | 1469X6X6Z | 3/8" | 3/8" | 0.406" | 0.85" | 0.92" |
| 1469X6X8 | 1469X6X8Z | 3/8" | 1/2" | 0.562" | 0.95" | 1.11" |
| 1469X8X4 | - | 1/2" | 1/4" | 0.313" | 0.87" | 1.00" |
| 1469X8 | 1469X8Z | 1/2" | 3/8" | 0.407" | 0.94" | 1.00" |
| 1469X8X8 | 1469X8X8Z | 1/2" | 1/2" | 0.531" | 1.04" | 1.19" |
| 1469X10X6 | 1469X10X6Z | 5/8" | 3/8" | 0.406" | 1.01" | 1.06" |
| 1469X10 | - | 5/8" | 1/2" | 0.531" | 1.10" | 1.25" |
| 1469X10X12 | - | 5/8" | 3/4" | 0.750" | 1.21" | 1.30" |
| 1469X12 | - | 3/4" | 1/2" | 0.531" | 1.20" | 1.34" |
