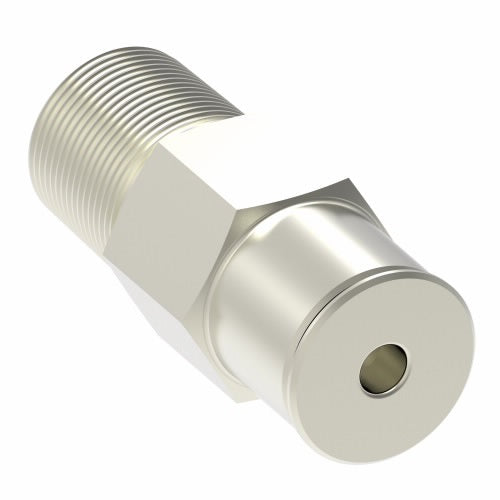

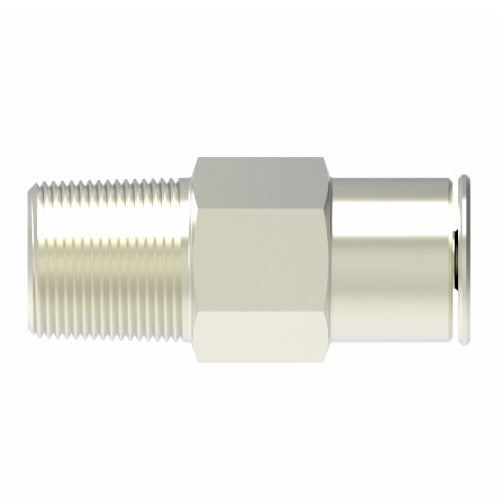

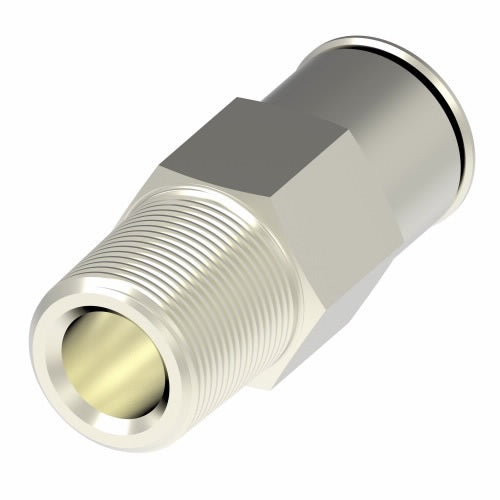

1168X6X2 by Danfoss | Push to Connect Adapter | Male Connector | 3/8" Tube OD x 1/8" Male Pipe | Nickel Plated Brass
Aeroquip® by Danfoss
Push to Connect Adapter - Male Connector
Male Pipe x Push to Connect End
Straight
Allen wrench use permits close quarter installation not possible with a standard wrench.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $10.14 |
| 40–79 | $9.17 |
| 80+ | $8.09 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Vacuum: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Nickel Plated Brass Part Number |
Tube O.D. | Male Pipe Thread | C | F | G | H | L | SW (mm) |
SW1 (mm) |
| 1168x2A | 1/8" | 10-32 UNF | 0.26" | 0.35" | 0.41" | 0.18" | 0.85" | 9 | 2 |
| 1168X2 | 1/8" | 1/8" | 0.19" | 0.34" | 0.55" | 0.31" | 0.75" | 12 | 2.5 |
| 1168X2X4 | 1/8" | 1/4" | 0.35" | 0.34" | 0.62" | 0.47" | 0.90" | 14 | 2.5 |
| 1168X2.5 | 5/32" | 1/8" | 0.19" | 0.34" | 0.55" | 0.31" | 0.74" | 12 | 2.5 |
| 1168X2.5X4 | 5/32" | 1/4" | 0.35" | 0.34" | 0.62" | 0.49" | 0.90" | 14 | 2.5 |
| 1168X4 | 1/4" | 1/8" | 0.28" | 0.46" | 0.55" | 0.31" | 0.92" | 12 | 4 |
| 1168X4X4 | 1/4" | 1/4" | 0.40" | 0.46" | 0.62" | 0.49" | 1.04" | 14 | 4 |
| 1168X4X6 | 1/4" | 3/8" | 0.42" | 0.46" | 0.86" | 0.49" | 1.10" | 19 | 4 |
| 1168X5 | 5/16" | 1/8" | 0.39" | 0.53" | 0.62" | 0.31" | 1.08" | 14 | 5 |
| 1168X5X4 | 5/16" | 1/4" | 0.41" | 0.53" | 0.62" | 0.49" | 1.10" | 14 | 6 |
| 1168X5X6 | 5/16" | 3/8" | 0.41" | 0.53" | 0.86" | 0.49" | 1.10" | 19 | 6 |
| 1168X6X2 | 3/8" | 1/8" | 0.39" | 0.60" | 0.79" | 0.31" | 1.18" | 17 | 4 |
| 1168X6 | 3/8" | 1/4" | 0.55" | 0.60" | 0.79 | 0.47" | 1.34" | 17 | 7 |
| 1168X6X6 | 3/8" | 3/8" | 0.35" | 0.60" | 0.86" | 0.47" | 1.14" | 19 | 7 |
| 1168X6X8 | 3/8" | 1/2" | 0.39" | 0.60" | 1.00" | 0.61" | 1.16" | 22 | 7 |
| 1168X8 | 1/2" | 3/8" | 0.48" | 0.72" | 0.36" | 0.49" | 1.31" | 19 | 10 |
| 1168X8X8 | 1/2" | 1/2" | 0.42" | 0.72" | 1.00" | 0.61" | 1.26" | 22 | 10 |
*UNF Thread. Seals with nylon washer (included).
