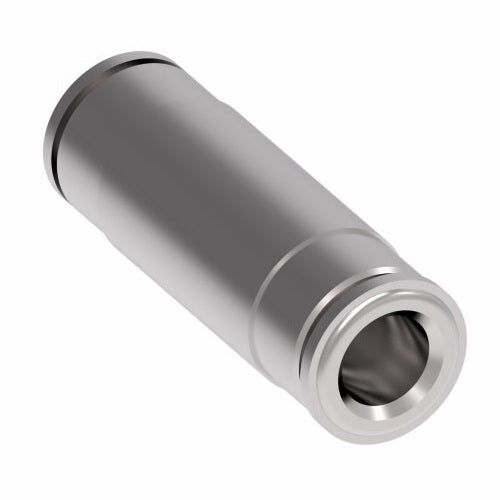

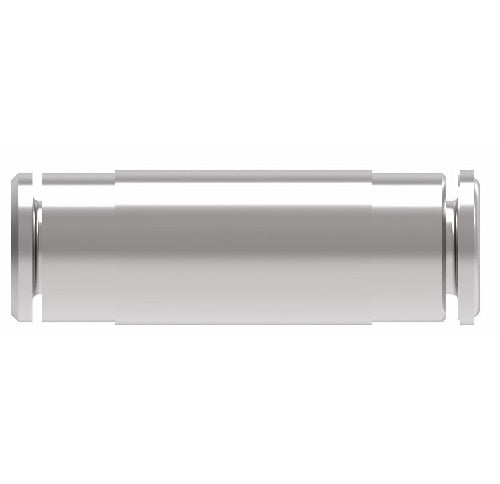

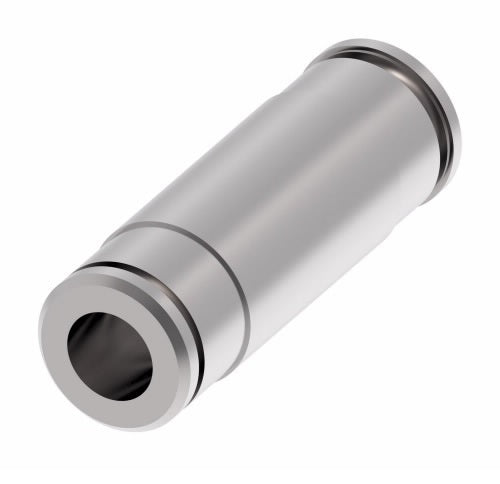

1162X4M by Danfoss | Metric Push to Connect Adapter | Union | 4mm Tube OD | Nickel Plated Brass
1162X4M by Danfoss | Metric Push to Connect Adapter | Union | 4mm Tube OD | Nickel Plated Brass
1162X4M by Danfoss | Metric Push to Connect Adapter | Union | 4mm Tube OD | Nickel Plated Brass

1162X4M by Danfoss | Metric Push to Connect Adapter | Union | 4mm Tube OD | Nickel Plated Brass

Sale price$12.35

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Union
Buy More, Save More!
Quantity Price Each
10–39 $11.61
40–79 $10.50
80+ $9.26
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Nickel Plated Brass
Compatible Series:
  • MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		 M5x.8
BSPT 1/8 (2PT) 1/4 (4PT) 3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP) 3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 F G L N
1162X4M 4mm 8.40mm 9mm 29.0mm 14.0mm
1162X5M 5mm 9.80mm 11mm 32.0mm 15.0mm
1162X6M 6mm 11.70mm 12mm 34.0mm 15.5mm
1162X8M 8mm 13.70mm 14mm 37.0mm 17.5mm
1162X10M 10mm 15.40mm 17mm 41.5mm 20.0mm
1162X12M 12mm 18.3mm 19mm 43.5mm 21.0mm
