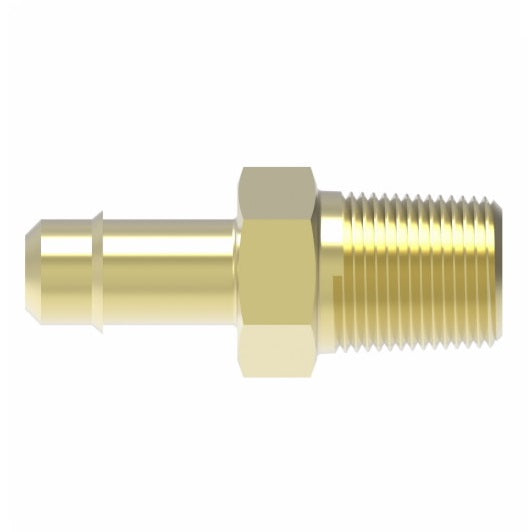

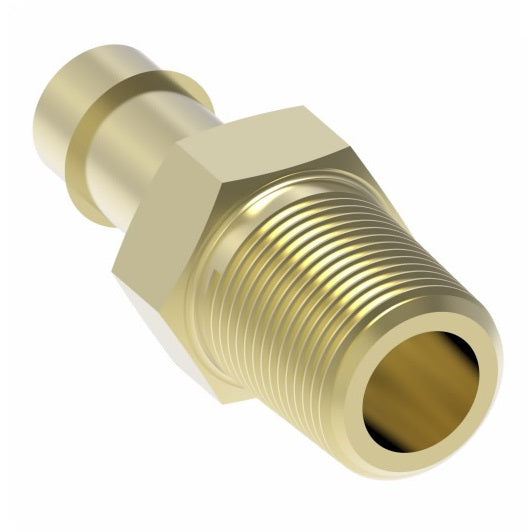

1068X4X4 by Danfoss | Mini-Barb Fitting | Male Connector | for 1/4" Tubing OD | 1/4" Male Pipe | Brass
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
Mini-Barb Fitting - Male Connector
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $3.84 |
| 40–79 | $3.48 |
| 80+ | $3.07 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Conformance: | |||
|
 |
|||
|---|---|---|---|
| Tubing OD | D | E | J |
| 5/32" | 0.062" | 0.113" | 0.380" |
| *3/16" | 0.078" | 0.125" | 0.500" |
| 1/4" | 0.127" | 0.189" | 0.500" |
| 3/8" | 0.196" | 0.270" | 0.500" |
| 1/2" | 0.312" | 0.395" | 0.630" |
*No barb on 3/16" size.
 |
|||||||
|---|---|---|---|---|---|---|---|
| Brass Part Number |
Brass with Sealant Part Number |
Tubing O.D. | Male Pipe Thread | Hex C |
D | D1 Opt. | L |
| 1068X2.5X2 | - | 5/32" | 1/8" | 7/16" | 0.06" | 0.19" | 0.98" |
| 1068X4X1 | - | 1/4" | 1/16" | 5/16" | 0.12" | - | 1.06" |
| 1068X4 | 1068X4Z | 1/4" | 1/8" | 7/16" | 0.12" | 0.19" | 1.06" |
| 1068X4X4 | - | 1/4" | 1/4" | 9/16" | 0.12" | 0.28" | 1.28" |
| 1068X6X2 | - | 3/8" | 1/8" | 7/16" | 0.19" | - | 1.09" |
| 1068X6 | - | 3/8" | 1/4" | 9/16" | 0.19" | 0.28" | 1.28" |
| 1068X8 | - | 1/2" | 3/8" | 11/16" | 0.31" | - | 1.38" |
