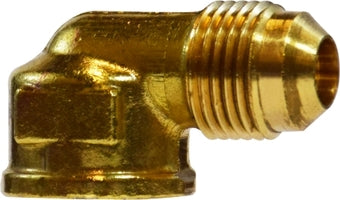

10317 by Midland | SAE 45° Flare Fitting | 5/16" Male SAE 45° Flare x 1/4" Female NPTF | 90° Elbow | Brass
Midland Industries
Brass Fitting - SAE 45° Flare - 90° Female Elbow - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $12.06 |
| 40–79 | $10.91 |
| 80+ | $9.62 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
| Applications: | LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. | Used With: | Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared. |
|---|---|---|---|
| SAE Rating: | SAE# 010203 | Conformance: | Meets specifications and standards of ASA, ASME, SAE and MS (Military standards). |
| Vibration: | Good resistance - use long nut when greater vibration resistance is required. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures |
| Tolerance: | +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. | Lead Free: | Not Lead Free |
| Working Pressure Ranges: | |||
|---|---|---|---|
|
|||
| Assembly Instructions: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4" |
| Thread Size B | 5/16-24 | 3/8-24 | 7/16-20 | 1/2-20 | 5/8-18 | 11/16-16 | 3/4-16 | 7/8-14 | 1-1/16-14 |
| Crossover Series: | |||||
|---|---|---|---|---|---|
| 50F | 250 | 500 | E3 | 50 | 150F |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Male Flare x Female NPTF | A | B | Body Size | Approx. Weight (Lbs.) |
| 10312 (10-312) |
3/16" x 1/8" | 0.81" | 0.44" | 0.56" | 0.05 |
| 10313 (10-313) |
1/4" x 1/8" | 0.90" | 0.46" | 0.56" | 0.06 |
| 10313B* | 1/4" x 1/8" | 0.95" | 0.46" | 0.56" | 0.06 |
| 10314 (10-314) |
1/4" x 1/4" | 0.97" | 0.59" | 0.75" | 0.08 |
| 10314B* | 1/4" x 1/4" | 0.95" | 0.66" | 0.75" | 0.08 |
| 10315 (10-315) |
1/4" x 3/8" | 1.03" | 0.57" | 0.81" | 0.09 |
| 10333 (10-333) |
1/4" x 1/2" | 1.08" | 0.66" | 1.00" | 0.12 |
| 10316 (10-316) |
5/16" x 1/8" | 0.94" | 0.88" | 0.45" | 0.08 |
| 10317 (10-317) |
5/16" x 1/4" | 1.03" | 0.58" | 0.75" | 0.06 |
| 10318 (10-318) |
3/8" x 1/8" | 1.00" | 0.88" | 0.47" | 0.10 |
| 10319 (10-319) |
3/8" x 1/4" | 1.06" | 0.59" | 0.75" | 0.09 |
| 10319B* | 3/8" x 1/4" | 1.15" | 0.73" | 0.68" | 0.14 |
| 10320 (10-320) |
3/8" x 3/8" | 1.06" | 0.57" | 0.81" | 0.10 |
| 10320B* | 3/8" x 3/8" | 1.10" | 0.75" | 0.82" | 0.16 |
| 10321 (10-321) |
3/8" x 1/2" | 1.16" | 0.66" | 1.00" | 0.14 |
| 10321L** (10-321L) |
3/8" x 1/2" | 1.21" | 0.42" | 0.96" | 0.13 |
| 10322 (10-322) |
3/8" x 3/4" | 1.28" | 0.72" | 1.25" | 0.12 |
| 10323 (10-323) |
1/2" x 1/4" | 1.25" | 0.70" | 0.88" | 0.13 |
| 10324 (10-324) |
1/2" x 3/8" | 1.25" | 0.70" | 0.88" | 0.12 |
| 10324B* | 1/2" x 3/8" | 1.26" | 0.75" | 0.88" | 0.16 |
| 10325 (10-325) |
1/2" x 1/2" | 1.29" | 0.72" | 1.00" | 0.18 |
| 10325L** (10-325L) |
1/2" x 1/2" | 1.24" | 0.71" | 0.98" | 0.17 |
| 10326 (10-326) |
1/2" x 3/4" | 1.41" | 0.72" | 1.25" | 0.20 |
| 10327 (10-327) |
5/8" x 3/8" | 1.35" | 1.22" | 0.72" | 0.22 |
| 10328 (10-328) |
5/8" x 1/2" | 1.38" | 0.75" | 1.00" | 0.20 |
| 10329 (10-329) |
5/8" x 3/4" | 1.50" | 0.76" | 1.25" | 0.28 |
| 10330 (10-330) |
3/4" x 1/2" | - | - | - | 0.42 |
| 10331 (10-331) |
3/4" x 3/4" | - | - | - | 0.40 |
* Barstock
** "L" means light pattern: These fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial.
Dimension data can change without notice
