1" CS-FLEX 5 by Couplamatic | Four Spiral High Pressure Import Hydraulic Hose | SAE 100R12 | 1" ID | 50ft Bulk Length

1" CS-FLEX 5 by Couplamatic | Four Spiral High Pressure Import Hydraulic Hose | SAE 100R12 | 1" ID | 50ft Bulk Length

Sale price$643.54

Couplamatic Systems Inc.

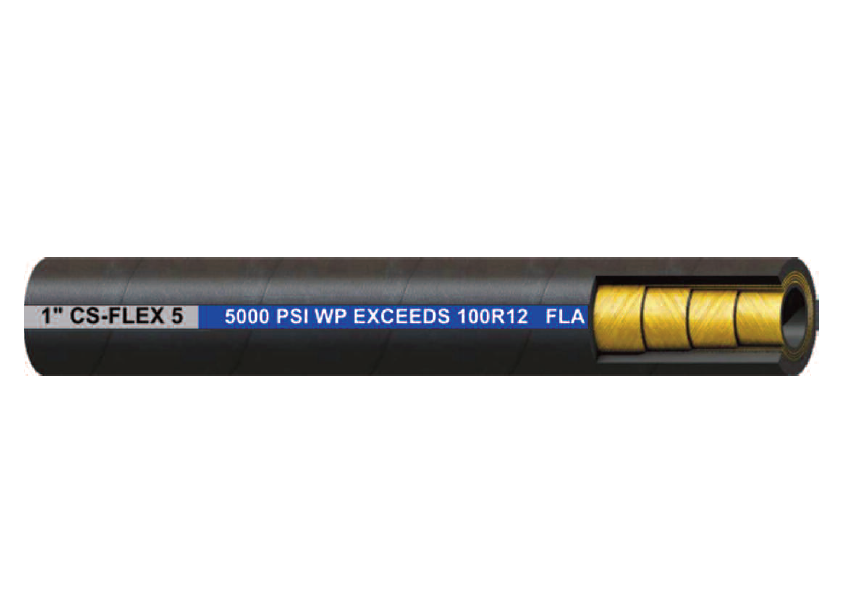

4 High Tensile Steel Spirals - CS-FLEX 5 Four Spiral High Pressure Import Hydraulic Hose - (SAE 100R12)
Buy More, Save More!
Quantity Price Each
5–14 $604.93
15–29 $547.01
30+ $482.66
Discounts applied in cart/checkout.

Product Data:

Series:
  • CS-FLEX 5 Series
Color(s):
  • Black
Dash Size:
  • -16
Applications: High Pressure Hydraulics, Industrial or Agricultural SAE Rating: Meets and Exceeds SAE 100R12
Cover: Abrasion and Flame Resistant Black Cover, MSHA Approved Reinforcement: 4 High Tensile Steel Spirals
Temperature: -40F to +250F (-40C to +121C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Coil Footage
1/2" CS-FLEX 5 1/2" 0.950" 5,500 lbs. 22,000 lbs. 3.5" 57 lbs. Bulk
3/4" CS-FLEX-5 3/4" 1.200" 5,500 lbs. 22,000 lbs. 4.7" 96 lbs. Bulk
1" CS-FLEX 5 1" 1.480" 5,000 lbs. 20,000 lbs. 7" 148 lbs. Bulk
1-1/4" CS-FLEX 5 1-1/4" 1.810" 5,000 lbs. 20,000 lbs. 11" 173 lbs. Bulk

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
