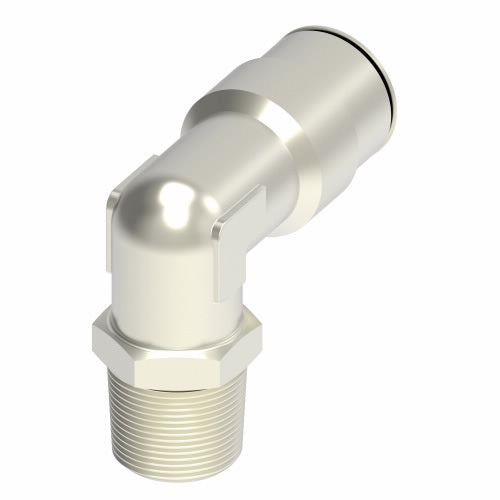

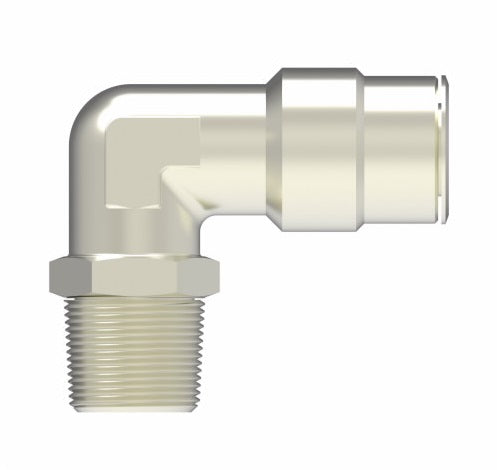

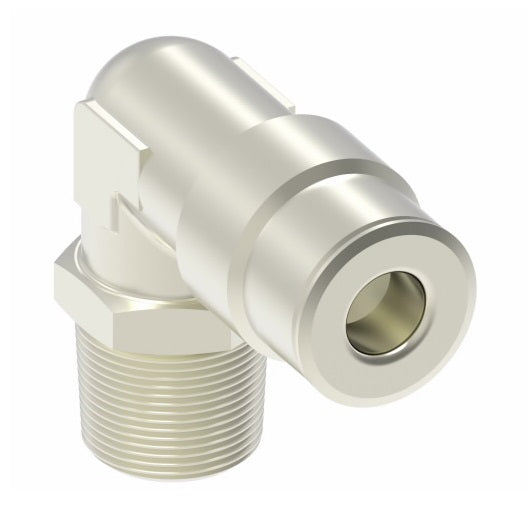

1169X6X2S by Danfoss | Push to Connect Adapter | Swivel Male 90° Elbow | 3/8" Tube OD x 1/8" Male NPTF | Nickel Plated Brass
Aeroquip® by Danfoss
Push to Connect Adapter - Swivel Male Pipe
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Vacuum: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Nickel Plated Brass Part Number |
Tube O.D. | Male Pipe Thread | C | E | F | H | M | SW | SW1 |
| 1169X2AS | 1/8" | 10-32 UNF | 0.24" | 0.53" | 0.39" | 0.18" | 0.83" | 9mm | 8mm |
| 1169X2S | 1/8" | 1/8" | 0.14" | 0.65" | 0.35" | 0.32" | 0.69" | 0.32" | 0.47" |
| 1169X2X4S | 1/8" | 1/4" | 0.14" | 0.69" | 0.35" | 0.47" | 0.70" | 0.32" | 0.55" |
| 1169X2.5AS | 5/32" | 10-32 UNF | 0.24" | 0.53" | 0.39" | 0.18" | 0.79" | 9mm | 8mm |
| 1169X2.5S | 5/32" | 1/8" | 0.14" | 0.65" | 0.35" | 0.32" | 0.69" | 0.32" | 0.47" |
| 1169X4S | 1/4" | 1/8" | 0.16" | 0.67" | 0.50" | 0.32" | 0.79" | 0.35" | 0.47" |
| 1169X4X4S | 1/4" | 1/4" | 0.16" | 0.71" | 0.50" | 0.47" | 0.79" | 0.35" | 0.55" |
| 1169X4X6S | 1/4" | 3/8" | 0.16" | 0.67" | 0.50" | 0.47" | 0.79" | 0.35" | 0.75" |
| 1169X5S | 5/16" | 1/8" | 0.20" | 0.71" | 0.55" | 0.32" | 0.87" | 0.43" | 0.47" |
| 1169X2.5X4S | 5/32" | 1/4" | 0.24" | 0.87" | 0.39" | 0.47" | 0.83" | 9mm | 14mm |
| 1169X5X4S | 5/16" | 1/4" | 0.20" | 0.75" | 0.55" | 0.47" | 0.87" | 0.43" | 0.55" |
| 1169X5X6S | 5/16" | 3/8" | 0.20" | 0.73" | 0.55" | 0.47" | 0.87" | 0.43" | 0.75" |
| 1169X6X2S | 3/8" | 1/8" | 0.26" | 0.81" | 0.65" | 0.32" | 1.04" | 0.51" | 0.55" |
| 1169X6S | 3/8" | 1/4" | 0.25" | 0.85" | 0.65" | 0.47" | 1.04" | 0.51" | 0.55" |
| 1169X6X6S | 3/8" | 3/8" | 0.26" | 0.83" | 0.65" | 0.47" | 1.04" | 0.51" | 0.75" |
| 1169X6X8S | 3/8" | 1/2" | 0.26" | 0.91" | 0.65" | 0.61" | 1.04" | 0.51" | 0.87" |
| 1169X8X4S | 1/2" | 1/4" | 0.32" | 0.91" | 0.77" | 0.47" | 1.12" | 0.59" | 0.67" |
| 1169X8S | 1/2" | 3/8" | 0.32" | 0.87" | 0.77" | 0.47" | 1.12" | 0.59" | 0.75" |
| 1169X8X8S | 1/2" | 1/2" | 0.32" | 0.95" | 0.77" | 0.61" | 1.12" | 0.59" | 0.87" |
