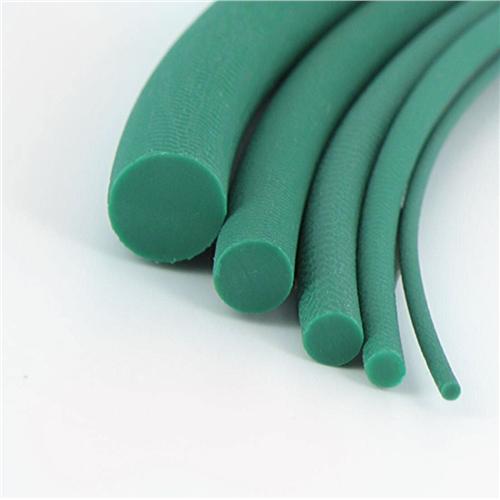

L04G899 by Fenner Drives | Eagle 89 Textured Round Belting | 9mm Diameter | Non-Reinforced | Green | 100ft
Fenner Drives

L04G899 by Fenner Drives | Eagle 89 Textured Round Belting | 9mm Diameter | Non-Reinforced | Green | 100ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:
  • Eagle Green 89 Non-Reinforced Textured Round Belting constructed of polyurethane with an 89 Shore A durometer that provides excellent abrasion resistance. A key feature of this belt is its textured surface, which lowers its surface coefficient of friction. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Green 89 Non-Reinforced Textured Round Belts' harder durometer and textured surface combine to lower the CoF of this belt. Eagle Green 89 Non-Reinforced Textured Round belts also have superior heat and water resistant properties making it an ideal choice for an application that requires frequent wash-downs.

    Best Suited For: Long conveyor lengths, heavier conveyed loads, or medium-duty power transmission applications, where a lower surface CoF (coefficient of friction) is desirable in a round belt profile.

  • 89 shore A durometer
  • Textured surface for lower surface CoF
  • Superior heat and water resistance
  • No take-ups required
  • REACH and RoHS 2002/95/EC Directive compliant


    • Eagle Green 89 Non-Reinforced Textured Round Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit.


SPECIFICATIONS

Profile Shape: Round Profile Size: 10mm, 12mm, 15mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm
Reinforcement: None Color: Green
Compliancy: REACH, RoHS Durometer: 89A
Material: Polyurethane Special Feature: Textured Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04G899 Eagle Green 89 Textured --- 9mm 3.19" 81mm 4.7 21 7.7 34.4 10.6 47.2 13.3 59 0.051 lbs 0.076 kg
4941103 Eagle Blue 80 MD 3/8" 9.5mm 2.63" 67mm 3 13.5 4.7 20.9 6.3 27.9 7.8 34.8 0.054 lbs 0.08 kg
4940005 Eagle Opaque 80 3/8" 9.5mm 2.63" 67mm 4.7 20.8 8 35.4 11.1 49.4 14 62.3 0.058 lbs 0.087 kg
1032012 Eagle Orange 85 3/8" 9.5mm 3" 76mm 4.4 19.4 6.7 29.9 9 39.9 11.1 49.2 0.057lbs 0.086 kg
4908018 Eagle Clear 85 3/8" 9.5mm 3" 76mm 4.4 19.4 6.7 29.9 9 39.9 11.1 49.2 0.057lbs 0.086 kg
4940025 Eagle Red 90 3/8" 9.5mm 3.75" 95mm 23.9 106.1 34.4 152.9 43.3 192.4 50.6 225.1 0.058 lbs 0.086 kg
4907018 Eagle Clear 95 3/8" 9.5mm 3.75" 95mm 8.2 36.3 12.1 53.9 15.6 69.3 18.5 82.4 0.059 lbs 0.088 kg
4934018 Eagle Clear 85 QC .375 x .152"* --- 3" 76mm 1.8 8.2 2.9 12.7 3.8 17.1 4.7 21 0.048 lbs 0.071 kg
4934025 Eagle Yellow 85 QC .375 x .152"* --- 3" 76mm 1.8 8.2 2.9 12.7 3.8 17.1 4.7 21 0.048 lbs 0.071 kg
4928007 Eagle Clear 95 3/8" 9.5mm 2.62" 67mm 3.4 15 5.2 23.2 7 31 8.7 38.7 0.053 lbs 0.079 kg

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.
